СКУ: GBX080010K

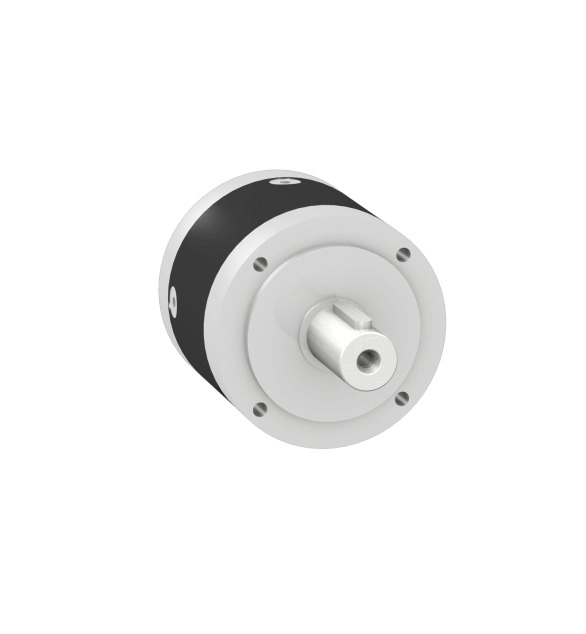

SCHNEIDER ELECTRIC Gearbox straight teeth GBX, Lexium, 80mm, reduction 10:1 ,7arc.min, 38N.m
-
Brand
Schneider Electric
-
Accessory
TRUE
-
Spare part
FALSE
-
Type of electrical accessory/spare part
EV000154
-
Type of mechanical accessory/spare part
EV000154
This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This planetary gearbox has straight teeth, lubricated for life. The gearbox external diameter is 80mm. This gearbox is to adapt speeds and torques of motors. This gearbox has a reduction ratio of 10/1, maximum axial force (Fa) of 900N at 100RPM and continuous output torque of 38N.m at 100RPM at 30°C. It offers service life of about 30000h at 100RPM at 30°C. It is an IP54 rated product. The enclosure is made of black anodized aluminium. It weighs 2.1kg. It can be mounted in any position. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.
