СКУ: LV480802

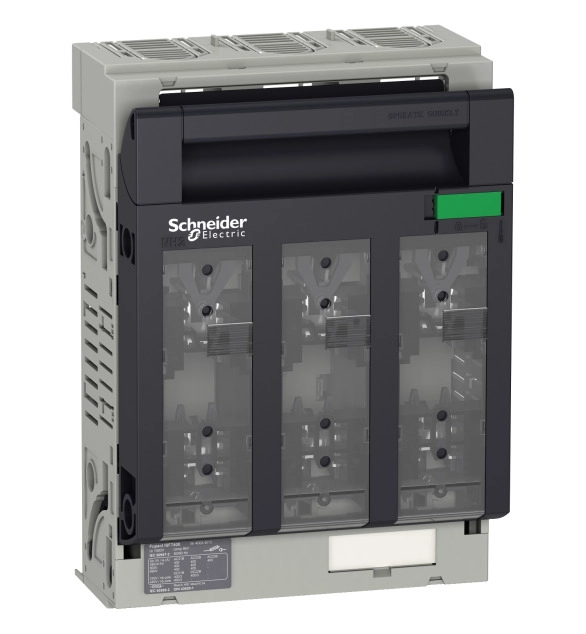

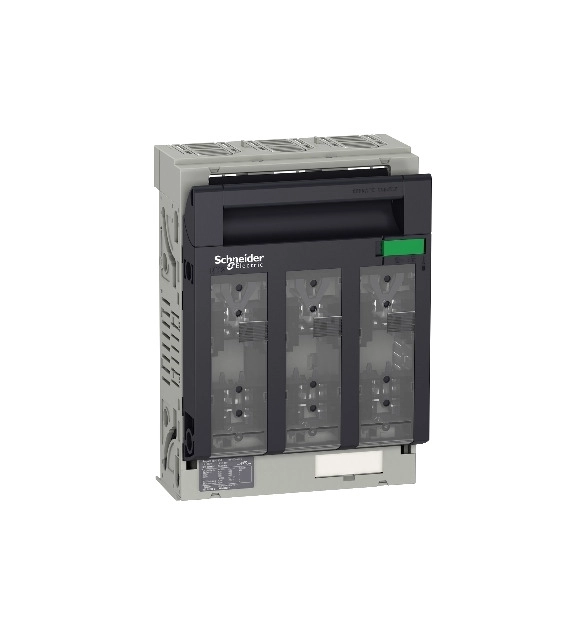

SCHNEIDER ELECTRIC Fuse switch disconnector, Fupact ISFT160, 160A, DIN NH00, 3P, backplate mounting

  • Brand
    Schneider Electric
  • Type of electric connection
    EV000415
  • Width
    108
  • SIL according to IEC 61508
    EV000494
  • Performance level according to EN ISO 13849-1
    EV000494
  • Height
    90
  • Voltage type of supply voltage
    EV000461
  • Rail mounting possible
    TRUE
  • Modular version
    TRUE
  • Degree of protection (IP)
    EV006414
  • Depth
    67.5
  • Suitable for safety functions
    TRUE
  • Direct mounting possible
    TRUE
  • Stabilized
    TRUE
  • Built-in height
    90
  • Short-circuit-proof
    TRUE
  • Power output
    24
  • Max. output current 1
    1
  • Output voltage stabilized
    TRUE
  • Wall mounting possible
    TRUE
  • Secondary voltage adjustable
    FALSE
  • 1st secondary output voltage at DC
    22.8
  • Power consumption
    4.2
  • Rated supply voltage at DC
    80

This device FuPacT ISFT160 is a 3 poles fuse switch disconnector, fixed and front connected. FuPacT ISFT features offer more flexibility in terms of mounting and cabling. It is a basic device for mounting on a busbars with turnable hooks. The rated operational current is 160A at 690VAC for AC21B utilisation category, 160A at 500VAC for AC22B. Fuse link type is DIN NH00. It complies with IEC 60947-1 and IEC 60947-3 standards.
