SCHNEIDER ELECTRIC Fuse carrier TeSys DF, 3P+N 32A, fuse size 10x38 mm | Spark & Co
  • 3D
|

СКУ: DF103N

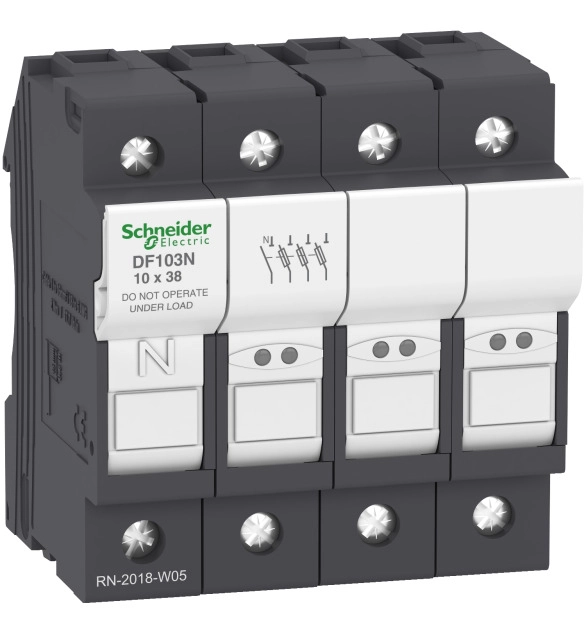

SCHNEIDER ELECTRIC Fuse carrier TeSys DF, 3P+N 32A, fuse size 10x38 mm

  • Brand
    Schneider Electric
  • Built-in depth
    56.5
  • Degree of protection (IP)
    EV006405
  • Lockable
    TRUE
  • Mounting method
    EV000242
  • With optical defect indication
    FALSE
  • Width in number of modular spacings
    4
  • Number of poles
    4
  • Concurrently switching neutral conductor
    TRUE
  • Nominal voltage
    690
  • For fuse size
    EV010286

TeSys DF modular fuse carrier, 4 poles (3P+N), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA at 400V. It provides a Neutral pole fitted with a locked tubular link. Compact (70mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits) are available (to be ordered separately). Sold in lots of 3 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine).
