SCHNEIDER ELECTRIC Fuse carrier TeSys DF, 3P 125A, fuse size 22x58 mm, blown fuse indicator | Spark & Co
  • 3D
|

СКУ: DF223VC

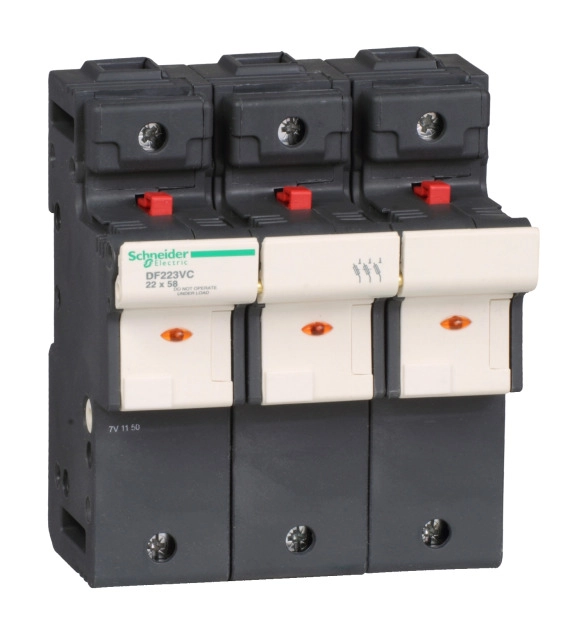

SCHNEIDER ELECTRIC Fuse carrier TeSys DF, 3P 125A, fuse size 22x58 mm, blown fuse indicator

  • Brand
    Schneider Electric
  • Number of poles
    3
  • Degree of protection (IP)
    EV006405
  • Concurrently switching neutral conductor
    FALSE
  • Mounting method
    EV000242
  • Width in number of modular spacings
    6
  • Lockable
    FALSE
  • With optical defect indication
    TRUE
  • Built-in depth
    70
  • Nominal voltage
    690
  • For fuse size
    EV010288

TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 125A/690V. To be used with 22x58mm fuse links with stricker up to 125A and short circuit current up to 120kA at 400V. To be equipped with an early break auxiliary contact module DF22AM* (to be ordered separately), it provides blown fuse indication by LED. Compact (105mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with stricker (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits) are available (to be ordered separately). Sold in lots of 2 units. Multi standards certified (IEC, UL recognized, CSA, EAC).
