SCHNEIDER ELECTRIC Flat screen, Harmony GTU, 15 inch wide display, 1366x768pixels FWXGA | Spark & Co
  • 3D
|

СКУ: HMIDT752

SCHNEIDER ELECTRIC Flat screen, Harmony GTU, 15 inch wide display, 1366x768pixels FWXGA

  • Brand
    Schneider Electric
  • Supporting protocol for SERCOS
    FALSE
  • Radio standard GPRS
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Radio standard GSM
    FALSE
  • Radio standard UMTS
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Voltage type of supply voltage
    EV000461
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Radio standard Bluetooth
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Radio standard Wi-Fi 802.11
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for KNX
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Supporting protocol for Modbus
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supply voltage DC
    24
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Degree of protection (IP), front side
    EV006423
  • Supporting protocol for EtherNet/IP
    TRUE
  • Type of display
    EV005759
  • Touch technology
    EV013187
  • With SW interfaces
    FALSE
  • With colour display
    TRUE
  • Screen diagonal
    15
  • Number of HW-interfaces serial TTY
  • Number of HW-interfaces industrial Ethernet

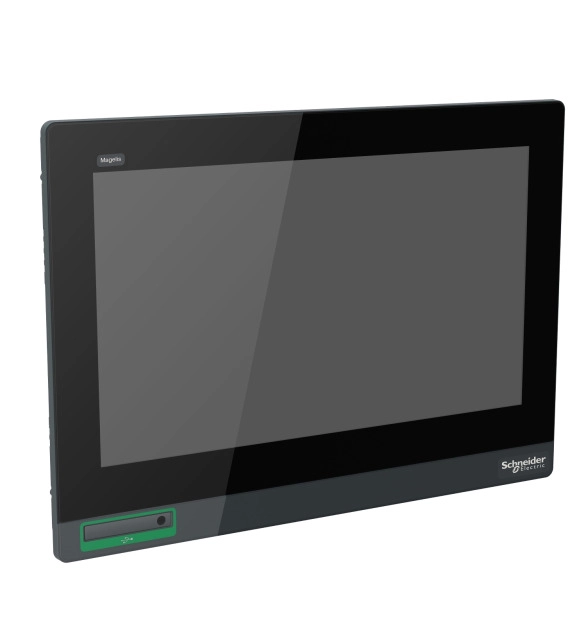

The touch screen display features 15.6inch color TFT LCD display, supports 1366 x 768 pixels FWXGA resolution. It is equipped with USB 2.0 type A, USB 2.0 type mini B integrated connections. The touch panel is designed with multi-touch projected capacitive technology (PCT) 50 million cycles. This touch panel screen has 16 million colors with 50,000 hours of backlight lifespan. It is an IP66/IP67 and NEMA 4X rated product. Its dimensions are 414mm (width) x 69mm (depth) x 295mm (height). It weighs 5kg. It is suitable for complex machines, food/beverages, water, wastewater, mining, mineral, metal packaging and conveying applications. This product is certified by RCM, CULus, CE and KC. It meets UL 508, ANSI/ISA 12-12-01, class I division 2 CSA C22.2 No 213, CSA C22.2 No 142 and IEC 61132-2 standards. This display is compatible with all Premium and Open Harmony GTU Boxes. It supports panel mount for indoor installation. Harmony GTU (formerly known as Magelis GTU) products are universal panels that include smartphone like interface and wireless technology.
