СКУ: A9C32316

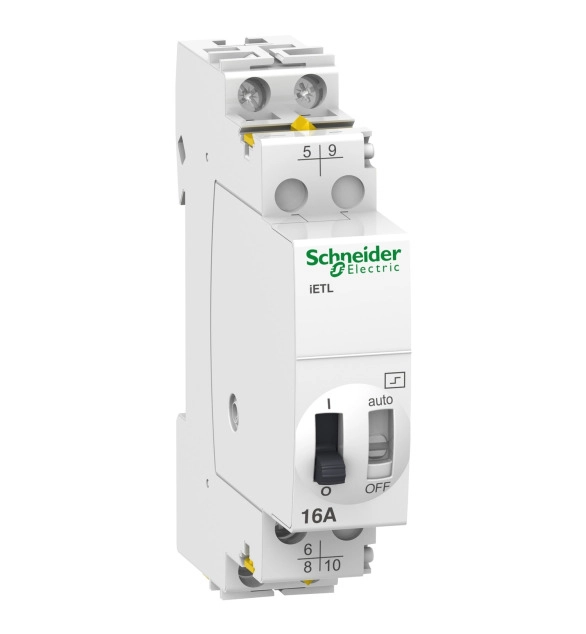

SCHNEIDER ELECTRIC Extension iETL iTL 16 - 2P, 1C/O+1NO, 16A, coil 130VAC 50/60Hz / 48VDC
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Width in number of modular spacings
1
-
Mounting method
EV000242
-
Rated current
16
-
Number of contacts as change-over contact
1
-
Frequency control voltage 1
50
-
Voltage type of supply voltage
EV000460
-
Type of control voltage 1
EV000460
-
Supply voltage
24
-
Type of control voltage 2
EV000461
-
Max. load fluorescent lamp (parallel compensated)
900
-
Max. incandescent lamp load
1600
-
Max. load fluorescent lamp
1300
-
Max. load fluorescent lamp (Duo circuit)
2000
-
Max. switching current (cos phi = 0.6)
16
-
Control voltage 1
130
-
Control voltage 2
48
-
Number of contacts as normally closed contact
-
Built-in depth
84
-
Function
EV000147
This Acti9 iETL iTL 16 is a modular extension for impulse relay. This 2P device has 1 changeover and 1 normally open contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 130VAC or 48VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be 50ms. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C . This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.
