СКУ: 33878

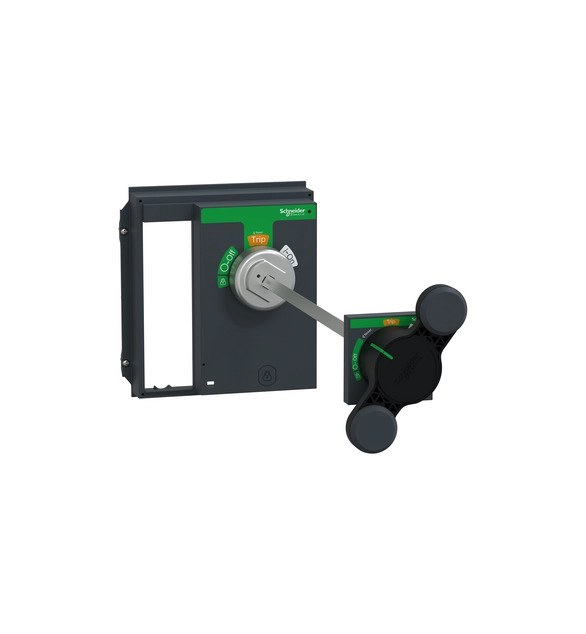

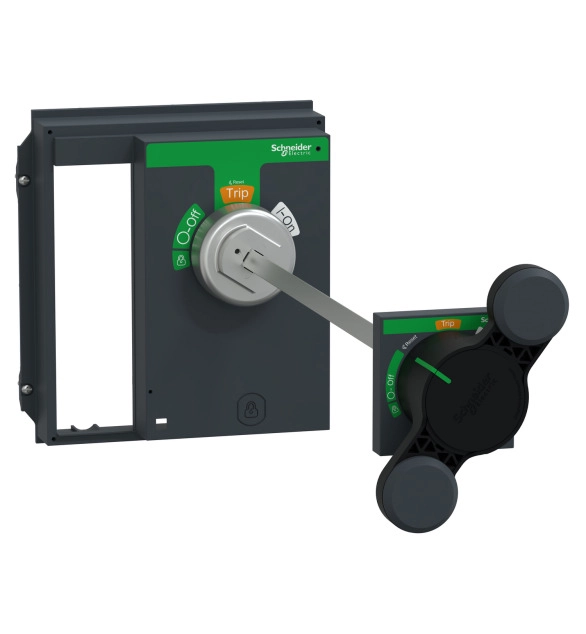

SCHNEIDER ELECTRIC Extended rotary handle, front control, Compact NS630b to 1600, black handle

Brand
Schneider Electric
Lockable
TRUE
With axis extension
TRUE
With door interlock
TRUE
With handle red/yellow
TRUE

It is a single standard auxiliary contact that provides Early Break (CAO) remote information. The Early Break contact indicates the position of the rotary handle. It is used particularly for advanced opening of trip devices (early break). The contact fits into the rotary handle (standard or extended version). This auxiliary has 2 common points changeover type contact with 2 normally open contact and 2 normally closed contact. The rated current is 6A and the minimum load is 100mA at 24 VDC. Utilization categories are AC12/AC13/DC12/DC14. Compact NS 630b to 3200 can be equipped with 1 Early Break and 1 Early Make auxiliary contacts. It complies with IEC 60947-5-1 standard.
