СКУ: 13182

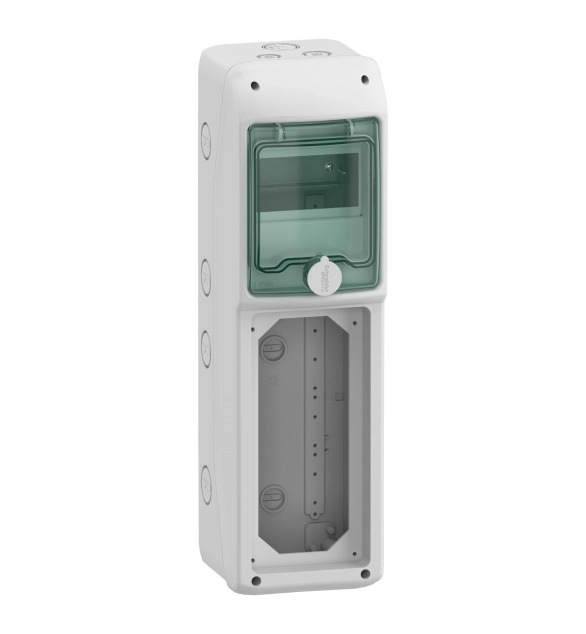

SCHNEIDER ELECTRIC Enclosure KAEDRA for power outlet - 8 openings, 1x18 modules
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Concurrently switching neutral conductor
FALSE
-
Frequency
50
-
Built-in depth
47
-
Rated insulation voltage Ui
690
-
Additional equipment possible
TRUE
-
Rated impulse withstand voltage Uimp
8
-
Release characteristic
EV000084
-
Voltage type
EV000509
-
Flush-mounted installation
FALSE
-
Explosion-proof
FALSE
-
Connectable conductor cross section solid-core
1.5
-
Over voltage category
4
-
Ambient temperature during operating
-30
-
Connectable conductor cross section multi-wired
1
-
Pollution degree
3
-
Rated current
40
-
Width in number of modular spacings
4.5
-
Number of poles (total)
3
-
Number of protected poles
3
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
70
-
Rated voltage
415
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
36
This functional plate for 1 opening is a Kaedra weatherproof enclosure accessory. The dimension are (W) 103mm x (H) 225mm with 1 opening 100mm x 107mm for plug and sockets up to 63A. It is fixed by screws. The degree of protection is IP65 and IK09. The fire resistance is 650°C. This device is made of self-extinguishing polymer material.
