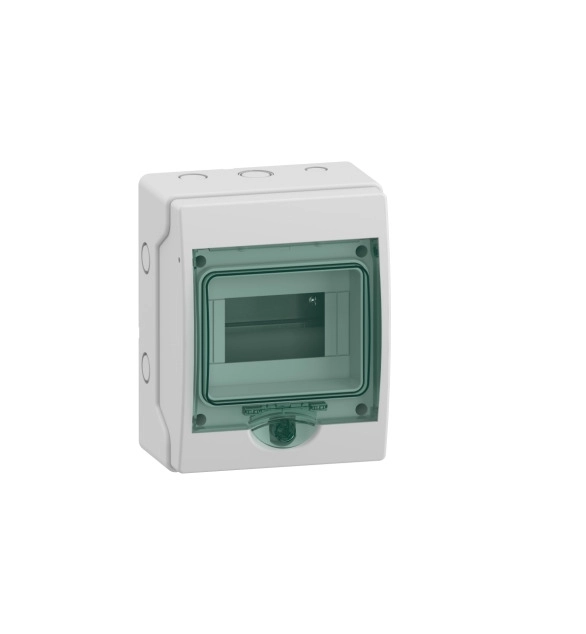

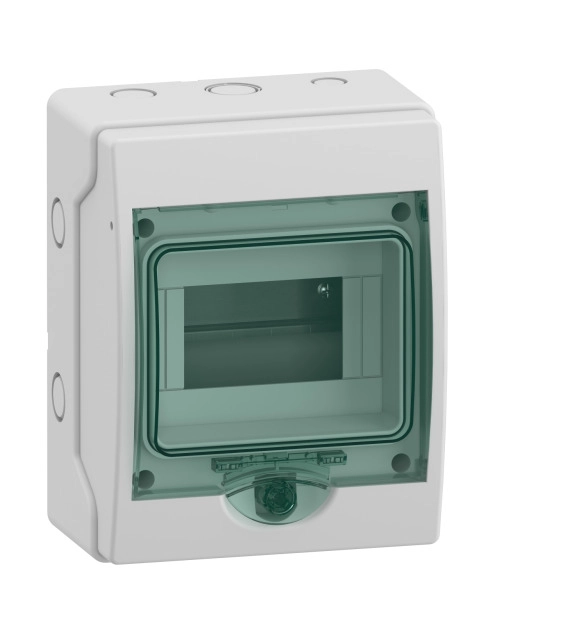

SCHNEIDER ELECTRIC Enclosure Kaedra, for modular devices, 3x18 modules, 2 terminal blocks

This Mureva Enclosure weatherproof enclosure is a surface mounted enclosure for modular device with interface. It can accomodate all types of modular switchgear. There is a zone for industrial or domestic power outlets, buttons or indicator lights. The IP degree of protection is IP65. This enclosure is dedicated to indoor or outdoor waterproof installation. It is provided with a transparent green door for modular devices. The colour of enclosure is light grey (RAL 7035). It is intended for new or renovated installation in residential. The cables can enter by the top side of the enclosure via 3 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail, 2 plates for 65x85mm power outlets and 1 plate for push-button control. It comes with 1 terminal block. The terminal blocks have 22 outgoers (11x10mm² + 11x16mm²). A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The In rated current is up to 90A. This product complies with the IEC 60670-1 and -24 standards. The dimensions are (W) 448mm x (H) 460mm x (D) 160mm. The material is a plastic self-extinguishing material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is halogen free. The IK degree of protection is IK09. The operating temperature is -25°C to 60°C.
