СКУ: VCF0GE

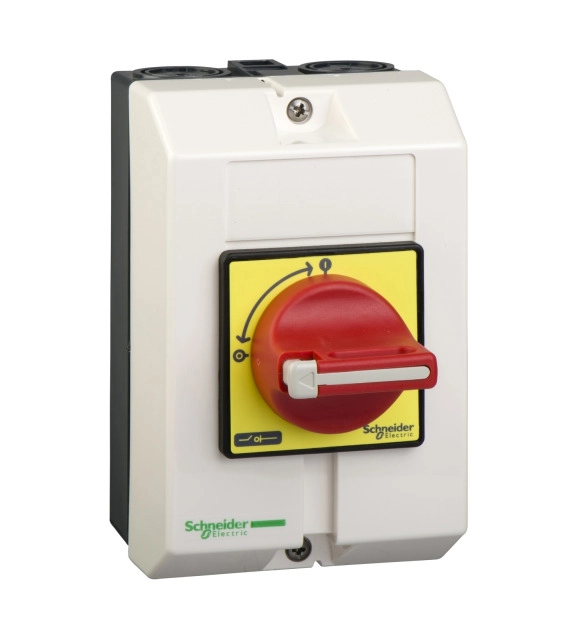

SCHNEIDER ELECTRIC Enclosed TeSys Vario emergency switch disconnector, 20A, IP65
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Version as reversing switch
FALSE
-
Conditioned rated short-circuit current Iq
10
-
Max. rated operation voltage Ue AC
690
-
Number of poles
3
-
Voltage release optional
FALSE
-
Version as maintenance-/service switch
FALSE
-
Version as safety switch
FALSE
-
Rated operating voltage
690
-
Suitable for front mounting 4-hole
TRUE
-
Suitable for distribution board installation
FALSE
-
Number of switches
1
-
Motor drive integrated
FALSE
-
Suitable for intermediate mounting
FALSE
-
Suitable for floor mounting
FALSE
-
Motor drive optional
FALSE
-
Rated permanent current at AC-23, 400 V
57
-
Rated operation power at AC-3, 400 V
5.5
-
Rated short-time withstand current lcw
0.3
-
Rated operation power at AC-23, 400 V
7.5
-
Rated permanent current Iu
20
-
Rated permanent current at AC-21, 400 V
20
-
Suitable for front mounting centre
FALSE
-
Version as main switch
TRUE
-
Interlockable
TRUE
-
Degree of protection (IP), front side
EV006421
-
Version as emergency stop installation
TRUE
-
Type of control element
EV000092
-
Colour control element
EV000233
-
Switching power at 400 V
11
-
Device construction
EV009311
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as change-over contact
-
Number of auxiliary contacts as normally open contact
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 20A 690V, for main and emergency stop switching in motor applications AC-23 up to 7.5kW/400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V0 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1,environmental compliant (RoHS/REACh).
