SCHNEIDER ELECTRIC Enclosed DOL reversing starter TeSys LG - 4..6.3A, 380/400V AC coil | Spark & Co
  • 3D
|

СКУ: LG8K06Q710

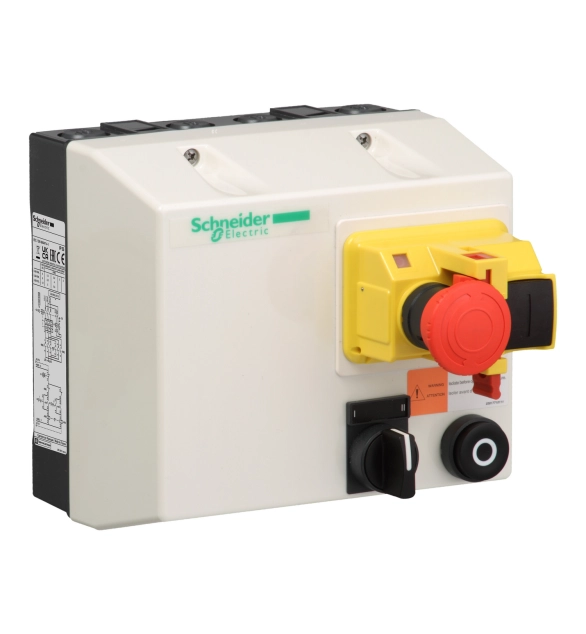

SCHNEIDER ELECTRIC Enclosed DOL reversing starter TeSys LG - 4..6.3A, 380/400V AC coil

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Height
    165
  • Voltage type for actuating
    EV000460
  • Degree of protection (IP)
    EV006420
  • Supporting protocol for SERCOS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Rail mounting possible
    FALSE
  • Supporting protocol for Modbus
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Rated control supply voltage Us at AC 50HZ
    380
  • Rated control supply voltage Us at AC 60HZ
    380
  • With transformer
    FALSE
  • External reset possible
    FALSE
  • Type of electrical connection for auxiliary- and control current circuit
    EV000415
  • Type of motor starter
    EV004003
  • Supporting protocol for other bus systems
    FALSE
  • With fuse
    FALSE
  • With short-circuit release
    TRUE
  • Suitable for emergency stop
    TRUE
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Rated operation power at AC-3, 400 V
    2.2
  • Number of indicator lights
  • Number of command positions
    4
  • Overload release current setting
    4
  • Release class
    EV008931
  • Width
    175
  • Ambient temperature, upper operating limit
    40
  • Temperature compensated overload protection
    TRUE
  • Rated power, 460 V, 60 Hz, 3-phase
    3
  • Rated conditional short-circuit current, type 1, 480 Y/277 V
    50000
  • Coordination class according to IEC 60947-4-3
    EV006626
  • Rated operation power at AC-3, 230 V, 3-phase
    1.1
  • Depth
    177
  • Rated operation current Ie
    6
  • Rated operation current at AC-3, 400 V
    6

TeSys LE enclosed DOL starter, including 1 LC1K contactor and 1 LR2K thermal overload relay, for 3-phase non-reversing motor control applications up to 2.2kW at 400V. It includes a LC1K contactor with 230V AC control circuit, and a LR2K thermal overload relay with 3.7-5.5A adjust range. ON/OFF motor control by a green push-button start (I) and a red push-button stop/reset (O), with a yellow operating indicator. Self-extinguishing ABS material enclosure with IP65 protection. To be combined with an external short circuit protection component, to reach a type 1 or type 2 coordination. Conforming to IEC 60947-4-1, environmental compliant (RoHS/REACh).
