СКУ: XB7NS8445

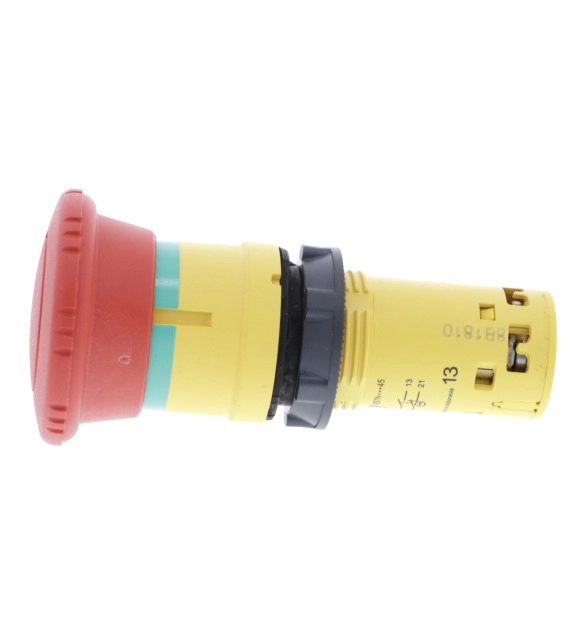

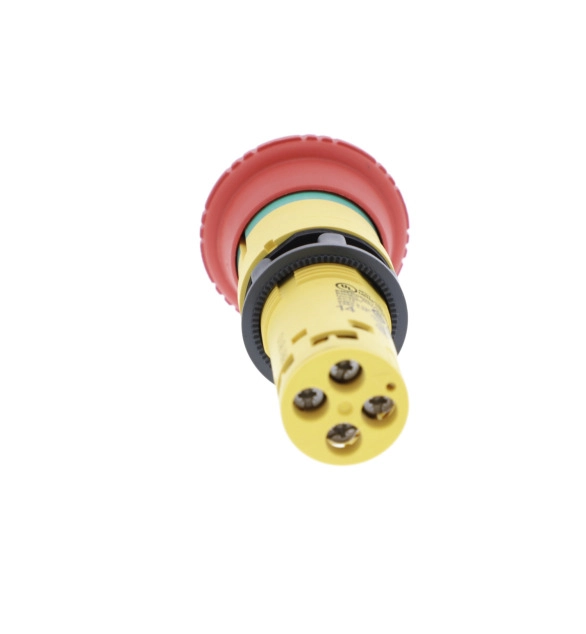

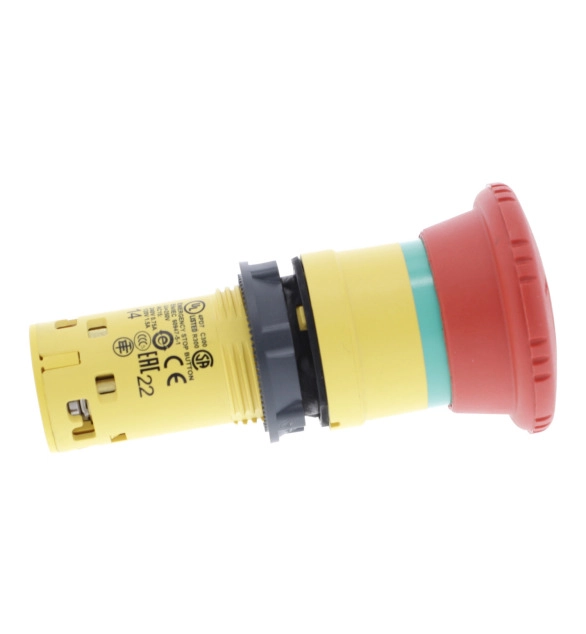

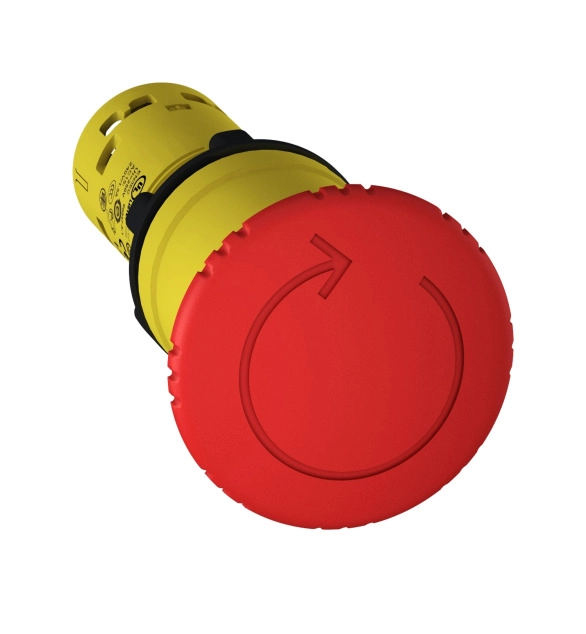

SCHNEIDER ELECTRIC Emergency stop Ø22, red, mushroom head Ø40mm, turn to release, 1NO+1NC
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Number of contacts as normally closed contact
1
-
Connection type auxiliary circuit
EV000415
-
Degree of protection (IP)
EV006421
-
Hole diameter
22.5
-
Degree of protection (NEMA)
EV000154
-
With lighting
FALSE
-
Diameter cap
40
-
Mounting method
EV000945
-
Unlocking method
EV000154
This Harmony XB7, Emergency stop 40mm mushroom head monolithic red push button operates with a latched-turn-to-release mechanism and screw clamp terminals. This emergency stop is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
