СКУ: LR97D07B

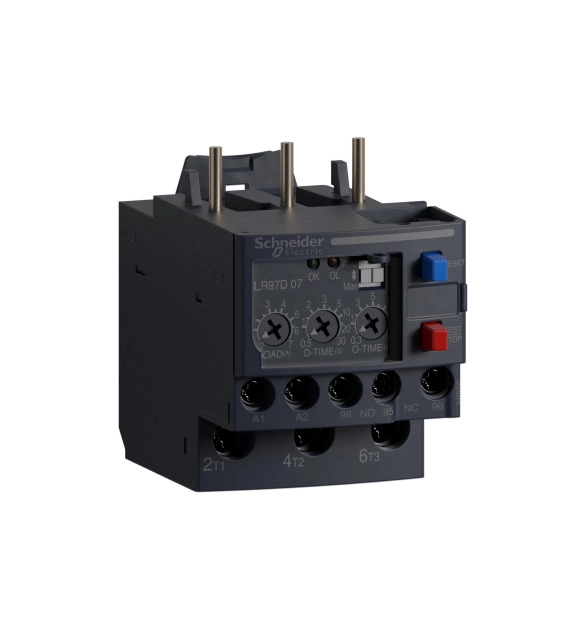

SCHNEIDER ELECTRIC Electronic overload relay for motor TeSys - 1.2..7A, 24V AC/DC
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Rated control supply voltage Us at AC 50HZ
24
-
Rated control supply voltage Us at AC 60HZ
24
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at DC
24
-
Mounting method
EV003970
-
Reset function automatic
TRUE
-
Reset function push-button
TRUE
-
Release class
EV009222
-
Reset function input
TRUE
-
Adjustable current range
1.2
-
Number of auxiliary contacts as change-over contact
1
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
TeSys LR97D electronic overcurrent relay, 7A/690V, to be supplied with 24V AC/DC, for protection of motors with a rated current 1.2-6A. It provides 3 dials to adjust the protection, LOAD (1.2-7A) for the overcurrent level, O-TIME (0.3-10sec) for the acceptable duration of the overcurrent, D-TIME (0.5-30sec) for the starting duration. In addition, the device trips when the current is higher than 3 x LOAD during more than 0.5sec in steady state and if there is a missing phase during more than 3sec. Settings also include selectors for 1-phase/3-phase motors and manual/automatic reset, the device has a reset button, a test/stop button, 2 LED indicators (Run/Trip), 2 auxiliary contacts 1NO/NC for fault signaling. Settings can be locked by sealing the transparent cover. For direct attachment to the bottom terminals of a 3-phase contactor LC1D09-D38, with screw clamp terminals on bottom, the separate mounting from the contactor is possible using the terminal block LAD7B106 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC, EAC), compliant RoHs/Reach.
