СКУ: MG350S-24F

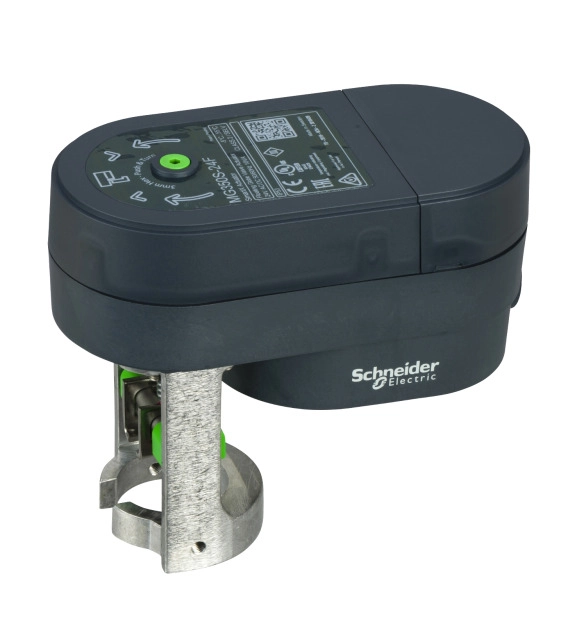

SCHNEIDER ELECTRIC Electro-mechanical actuator

  • Brand
    Schneider Electric
  • Explosion-proof
    FALSE
  • Suitable for manual operation
    TRUE
  • Potential free switch contact
    FALSE
  • Adjustable position feedback signal
    TRUE
  • Regulation type splitrange
    FALSE
  • Model
    EV020004
  • Return at zero supply voltage
    FALSE
  • Regulation type on/off
    FALSE
  • Position reporting system
    EV000494
  • Self-adjusting travel length
    FALSE
  • Suitable for valve
    TRUE
  • Auxiliary contacts optional
    FALSE
  • Automatic travel recognition
    FALSE
  • Degree of protection (NEMA)
    EV000069
  • Deactivated when closed
    FALSE
  • End contacts
    EV000494
  • With top flange direct mount according to ISO 5211
    FALSE
  • Adjustable operating range
    FALSE
  • Allowable relative humidity
    5
  • With mechanical setting indicator
    TRUE
  • Supply voltage
    EV021685
  • Auxiliary contacts
    TRUE
  • Degree of protection (IP)
    EV006614
  • Connection to stop valve
    EV000494
  • Max. electric power input
    5
  • With safety function
    FALSE
  • Suitable for air accessory
    TRUE
  • Control signal
    EV020581
  • Regulation type modulating
    FALSE
  • Energy consumption at rest
    3
  • Adjusting force
    350
  • Ambient temperature
    -5
  • Operating time
    102
  • Stroke length
    0.9375

The MG350V globe valve actuators are non-spring return electromechanical actuators for the control of two-way and three-way globe valves. They are use for fan coils, unit ventilators, reheat, cooling units, perimeter heating, and other applications. The actuators are compatible with older field-installed VB-9 globe valves as wall as other valves. Auto-calibration provides precise control by scaling the input signal to match the exact travel of the valve stem. Power Supply: 24 Vac. Three-Wire floating input signal, PMW, also compatible with two-position Form A 24 Vac/Vdc input signals. Field-selectable PMW ranges. Position Feedback Output Signal: 2…10 Vdc, 0…5 Vdc, Field selectable. Force: 350 N. Max. Stroke 16.5 mm. The stem adapter and stem adapter jam nut are included with the actuator. Graduated position indicator showing open to close with end point indicators. Removable terminal block, AWG 12 … 24, meets the requirements of cUL without the need of an electrical earth ground connection.
