SCHNEIDER ELECTRIC EasyLogic PM2220, Power & Energy meter, up to the 15th harmonic, RS485, class 1 | Spark & Co
  • 3D
|

СКУ: METSEPM2220

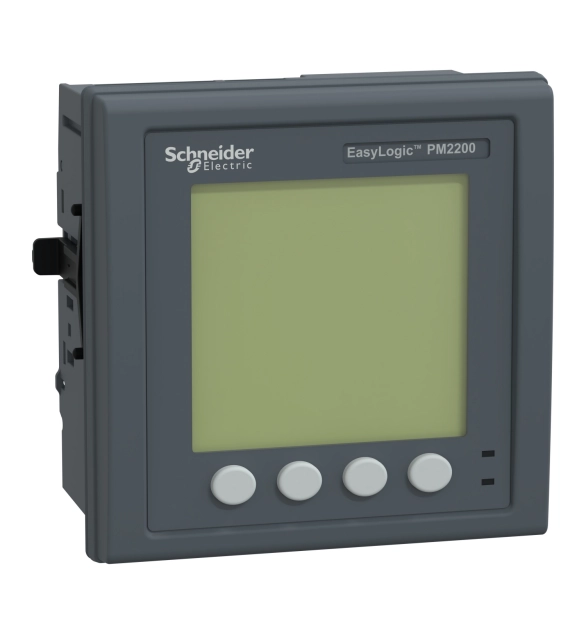

SCHNEIDER ELECTRIC EasyLogic PM2220, Power & Energy meter, up to the 15th harmonic, RS485, class 1

  • Brand
    Schneider Electric
  • Voltage type
    EV000509
  • Supporting protocol for Modbus
    FALSE
  • Supporting protocol for LON
    FALSE
  • Model
    EV010943
  • Measured value memory
    FALSE
  • Indication
    EV005572
  • Width
    96
  • Height
    96
  • Max. current (Imax)
    6
  • Calibrated
    FALSE
  • Pulse output
    EV000428
  • Pole type
    EV011974
  • Nominal current (In)
    5
  • Frequency measurement
    TRUE
  • Effective power
    TRUE
  • Power factor
    TRUE
  • Wth communication interface M-Bus
    FALSE
  • Apparent power
    TRUE
  • Measuring range
    35
  • With communication interface according to EN 62056-21
    FALSE
  • Reactive power
    TRUE
  • Mounting method
    EV008241
  • Measurement type load profile
    TRUE
  • Step angle (cos phi)
    FALSE
  • With communication interface KNX
    FALSE
  • Accuracy class
    1
  • With communication interface RS-485
    FALSE
  • Min. value storage
    FALSE
  • Top arbour measurement
    FALSE
  • Max. value storage
    FALSE

This Lexium 32 servo drive works at a rated supply voltage from 208V ac to 480V ac. It can feed 3-phase synchronous motors BMH or BSH, its continuous output current is 24A at 8kHz. The compact size of the servo drive and associated servo motor provides maximum power in the minimum space. This servo drive is specifically designed for industrial machines. It offers high performance, power and simplicity of use in motion control applications. It complies with international standards IEC/EN 61800-5-1, IEC/EN 61800-3, and is UL and CSA and is UL and CSA certified and CE marked. It has been developed to meet the requirements of directives regarding protection of the environment (RoHS).
