СКУ: 19004

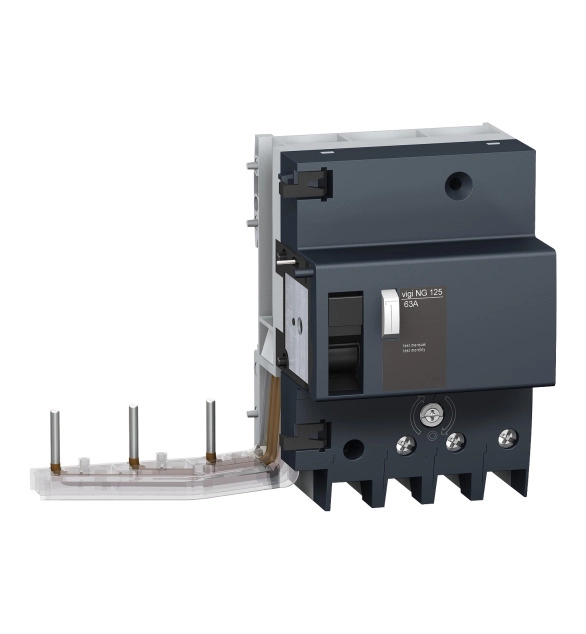

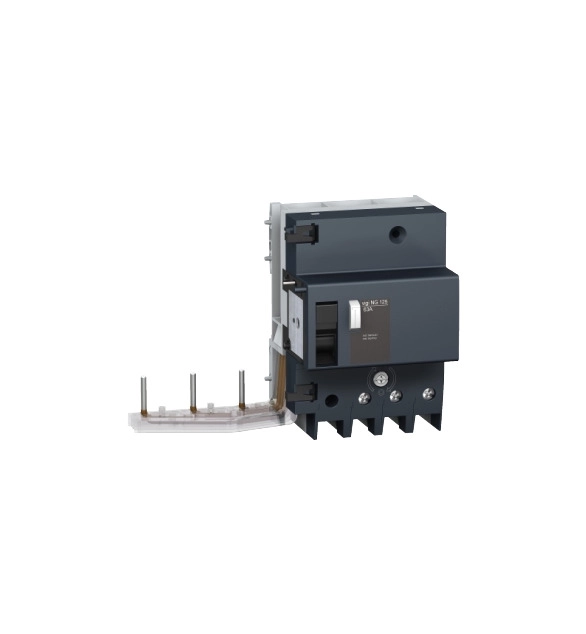

SCHNEIDER ELECTRIC Earth leakage add-on block Vigi NG125, 4P, 63A, 30mA
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Suitable for power circuit breaker
TRUE
-
Number of contacts as change-over contact
1
-
Suitable for motor safety switch
FALSE
-
Suitable for overload relay
FALSE
-
Suitable for off-load switch
TRUE
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at AC 60HZ
110
-
Number of contacts as normally open contact
-
Number of contacts as normally closed contact
-
Rated control supply voltage Us at DC
110
-
Rated control supply voltage Us at AC 50HZ
230
This Vigi NG125 product is a modular add-on residual current device. It is a 4P device with 63A In rated current. The earth leakage protection class is A type with a sensitivity of 300mA and a voltage independent technology. This product protects against electrical shock by indirect contact and fire hazards. This device is combined with a NG125 circuit breaker to provide the earth leakage protection and circuit protection. This product complies with IEC/EN 60947-2 standard. The Ue rated operational voltage is from 230VAC to 415VAC with an operating frequency of 50Hz to 60Hz. The Ui rated insulation voltage is 690VAC. It has a Uimp rated impulse withstand voltage of 8kV. The pollution degree is 3. The relative humidity is 95% at 55°C. The level of tropicalisation is 2 conforming to IEC 60068-1 standard. It can be mounted on a 35mm symmetrical DIN rail. The width in 9mm pitches is 9. The dimensions are (W) 189mm x (H) 118mm x (D) 81mm. The product weight is 0.45kg. The IP degree of protection is IP20 and becomes IP40 once in a modular enclosure.
