СКУ: BMXDRA1605H

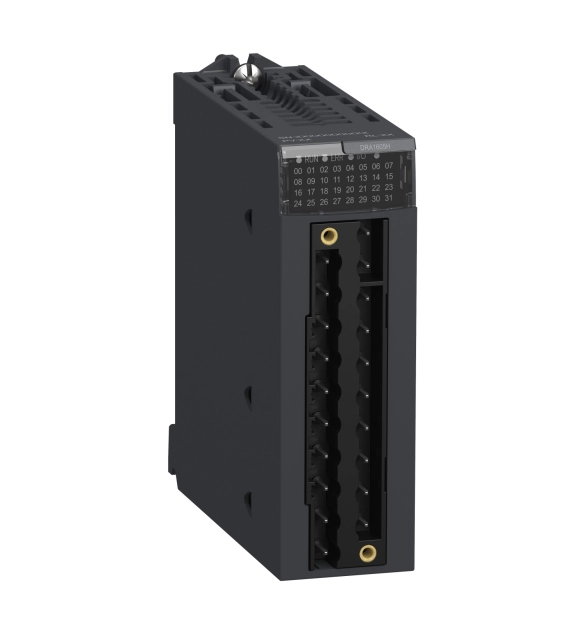

SCHNEIDER ELECTRIC Discrete output module, Modicon X80, 16NO relay outputs, 24-240VAC/24-48VDC
-
Brand
Schneider Electric
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Voltage type of supply voltage
EV000461
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Supply voltage DC
24
-
Height
100
-
Digital inputs configurable
FALSE
-
Digital outputs configurable
TRUE
-
Type of output voltage
EV000461
-
Depth
150
-
Redundancy
FALSE
-
Type of electric connection
EV000414
-
Number of digital inputs
-
Output current
0.5
-
Short-circuit protection, outputs available
TRUE
-
Type of digital output
EV001529
-
Type of voltage (input voltage)
EV000461
-
Width
33
-
Number of digital outputs
16
-
Input current at signal 1
0.65
-
Permitted voltage at output
24
-
Permitted voltage at input
24
-
Time delay at signal exchange
1.2
This ComPacT NSXm device is a 4 poles circuit breaker designed to optimize space and breaking capacity. The rated current (In) is 25A. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. It introduces new features like Everlink connectors technology. The product can be installed on a DIN rail or a mounting plate. It embeds new spring type auxiliaries externally visible. This circuit breaker is equipped with a MicroLogic 4.1 trip unit. The dimensions are 108mm (W) x 144mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications. ComPacT NSXm is part of the global Schneider Electric Environmental Program.
