СКУ: TM3DI8

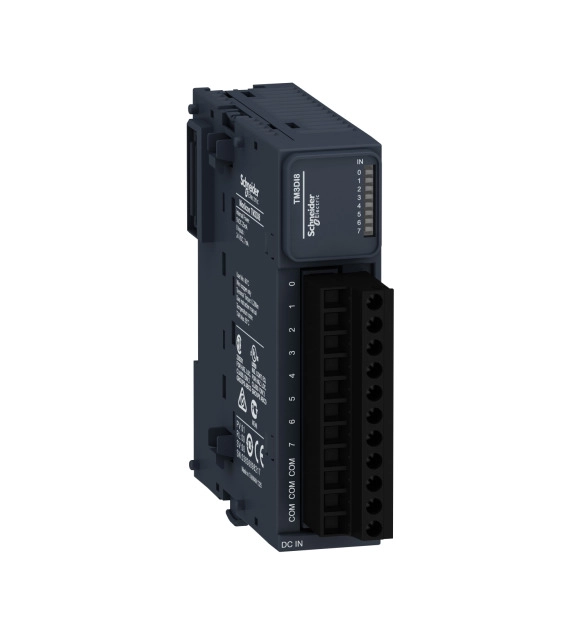

SCHNEIDER ELECTRIC Discrete input module TM3 - 8 inputs 24VDC
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Height
90
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Voltage type of supply voltage
EV000461
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Supply voltage DC
24
-
Digital inputs configurable
FALSE
-
Input current at signal 1
7
-
Short-circuit protection, outputs available
FALSE
-
Type of digital output
EV000494
-
Digital outputs configurable
FALSE
-
Permitted voltage at input
19.2
-
Type of voltage (input voltage)
EV000509
-
Time delay at signal exchange
4
-
Width
27.4
-
Number of digital inputs
8
-
Depth
84.6
-
Number of digital outputs
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. It is a discrete input module with 8 inputs with sink or source (positive/negative) logic. It is an input module with an input voltage of 24V DC and a current consumption of 24mA/5mA at 5V DC via bus connector. It can be used to create configurations with up to 8 inputs. There is an insulation between input and internal logic at 500V AC and non-insulation between inputs. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for inputs and is an IP20 rated product. It measures 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height) and it weighs 0.110kg. It is certified by CE, CULus, and C-Tick and meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It is sold in a 1-piece package. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
