SCHNEIDER ELECTRIC Digital input output module PowerTag C IO 230V | Spark & Co
  • 3D
|

СКУ: A9XMC1D3

SCHNEIDER ELECTRIC Digital input output module PowerTag C IO 230V

  • Brand
    Schneider Electric
  • Type of electric connection
    EV000415
  • Degree of protection (IP)
    EV006405
  • Supporting protocol for SERCOS
    FALSE
  • SIL according to IEC 61508
    EV000494
  • Performance level according to EN ISO 13849-1
    EV000494
  • Radio standard GPRS
    FALSE
  • Fieldbus connection over separate bus coupler possible
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Radio standard GSM
    FALSE
  • Explosion safety category for dust
    EV000494
  • Radio standard UMTS
    FALSE
  • Explosion safety category for gas
    EV000494
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Radio standard Bluetooth
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Appendant operation agent (Ex ia)
    FALSE
  • Radio standard Wi-Fi 802.11
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Front built-in possible
    FALSE
  • Supporting protocol for KNX
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Appendant operation agent (Ex ib)
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • IO link master
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Supporting protocol for Modbus
    FALSE
  • Suitable for safety functions
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Rack-assembly possible
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Rail mounting possible
    TRUE
  • Supporting protocol for other bus systems
    FALSE
  • Voltage type of supply voltage
    EV000460
  • Width
    18
  • With optical interface
    FALSE
  • System accessory
    FALSE
  • Digital outputs configurable
    TRUE
  • Depth
    62
  • Wall mounting/direct mounting
    TRUE
  • Supply voltage AC 50 Hz
    230
  • Supply voltage AC 60 Hz
    230
  • Number of digital outputs
    1
  • Number of digital inputs
    1
  • Height
    85
  • Output current
    2
  • Type of digital output
    EV000511
  • Type of output voltage
    EV000460
  • Type of voltage (input voltage)
    EV000460
  • Input current at signal 1
    2
  • Number of HW-interfaces Wireless
    1
  • Permitted voltage at output
    230
  • Permitted voltage at input
    230
  • Time delay at signal exchange
    100

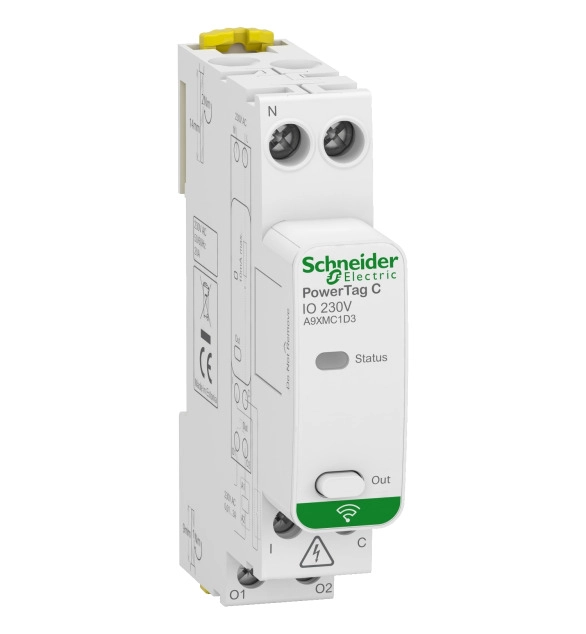

This PowerTag Control IO 230V is a wireless-communication input and output module. It is designed specifically for Control and monitoring applications. It is designed to monitor a circuit, notifying wireless to the concentrator the information status of a contract It has to be associated with a concentrator PowerTag Link or a Wiser IP module. This product can be installed in new or existing panels with simple commissioning operation. It has a status LED who provides information about PowerTag Control status. It is mounted on DIN rail and is compatible with horizontal comb busbars 9 mm modules. The Un Rated voltage is Phase-to-neutral 230VAC +/- 20%. The maximum consumption is below or equal to 2VA. The degree of protection is IP20 for casing and IP40 for front face. The operating temperature is between -25°C to +60°C. The storage temperature is between 40°C to +85°C. The dimensions are (W) 18mm x (H) 85mm x (D) 62mm. This product complies with IEC 60529 standard
