SCHNEIDER ELECTRIC Damper actuator, proportional(modulating), 2-10Vdc, spring return, 24Vac/dc, 20Nm | Spark & Co
  • 3D
|

СКУ: MD20SR-24M

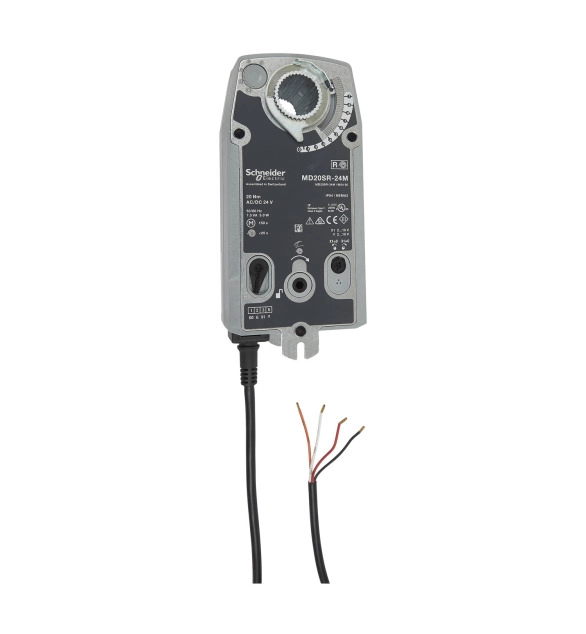

SCHNEIDER ELECTRIC Damper actuator, proportional(modulating), 2-10Vdc, spring return, 24Vac/dc, 20Nm

  • Brand
    Schneider Electric
  • Explosion-proof
    FALSE
  • Material housing
    EV000154
  • Degree of protection (IP)
    EV006419
  • Suitable for manual operation
    TRUE
  • Potential free switch contact
    FALSE
  • Deactivated when closed
    TRUE
  • Regulation type splitrange
    FALSE
  • Regulation type modulating
    TRUE
  • Return at zero supply voltage
    FALSE
  • Regulation type on/off
    FALSE
  • Suitable for air accessory
    FALSE
  • Position reporting system
    EV000494
  • Self-adjusting travel length
    FALSE
  • Suitable for valve
    TRUE
  • Auxiliary contacts optional
    FALSE
  • With safety function
    TRUE
  • Automatic travel recognition
    FALSE
  • Allowable relative humidity
  • Degree of protection (NEMA)
    EV000069
  • Auxiliary contacts
    FALSE
  • End contacts
    EV000494
  • With top flange direct mount according to ISO 5211
    FALSE
  • Adjustable operating range
    FALSE
  • With mechanical setting indicator
    TRUE
  • Supply voltage
    EV021685
  • Height
    105
  • Control signal
    EV021560
  • Connection to stop valve
    EV000494
  • Model
    EV010029
  • Operating time
    90
  • Torque
    20
  • Max. electric power input
    18
  • Ambient temperature
    -30
  • Adjustable position feedback signal
    FALSE
  • Depth
    101
  • Width
    285
  • Energy consumption at rest
    3
  • Max. angle of rotation
    90
  • Energy consumption in operation
    5.5
