SCHNEIDER ELECTRIC Control relay, S207 railway, 3NO+2NC, <= 690V, 110V DC low consumption coil | Spark & Co
  • 3D
|

СКУ: CAD326FLS207

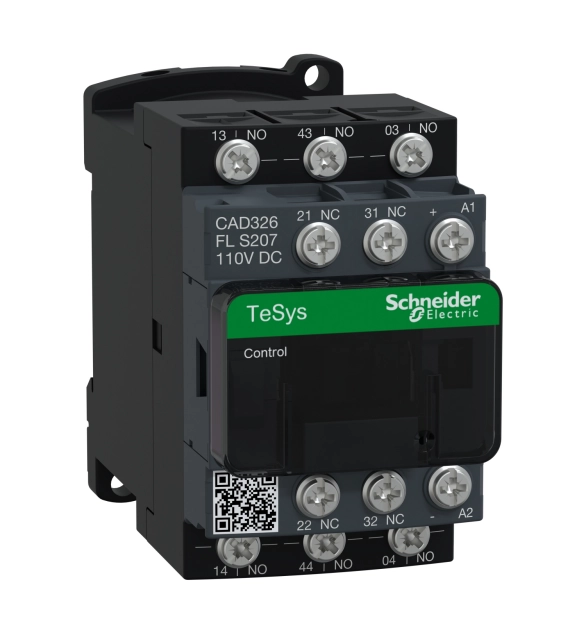

SCHNEIDER ELECTRIC Control relay, S207 railway, 3NO+2NC, <= 690V, 110V DC low consumption coil

  • Brand
    Schneider Electric
  • Voltage type for actuating
    EV000461
  • Rated control supply voltage Us at DC
    110
  • With LED indication
    FALSE
  • Suitable for manual operation
    FALSE
  • Connection type auxiliary circuit
    EV000154
  • Interface
    FALSE
  • Number of auxiliary contacts as normally closed contact
    2
  • Number of auxiliary contacts as normally open contact
    3
  • Mounting method
    EV010333
  • Rated operation current Ie, 400 V
    10
  • Number of auxiliary contacts as change-over contact
  • Number of auxiliary contacts as normally closed contact, delayed switching
  • Number of auxiliary contacts as normally open contact, leading

TeSys Deca control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It is fully compliant with railway standards. It provides a 110V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. It procures high reliability and durability with 180 cycles/min operating rate and 30 Mcycle mechanical durability under ambient temperature -40-70°C. The dimension is 77mm x 45mm x 93mm (H x W x D), clipping on rail or fixing by screw on plate. Multi standards certified (IEC, UL, CSA, CCC, EAC, UKCA).
