СКУ: LC1D65F7

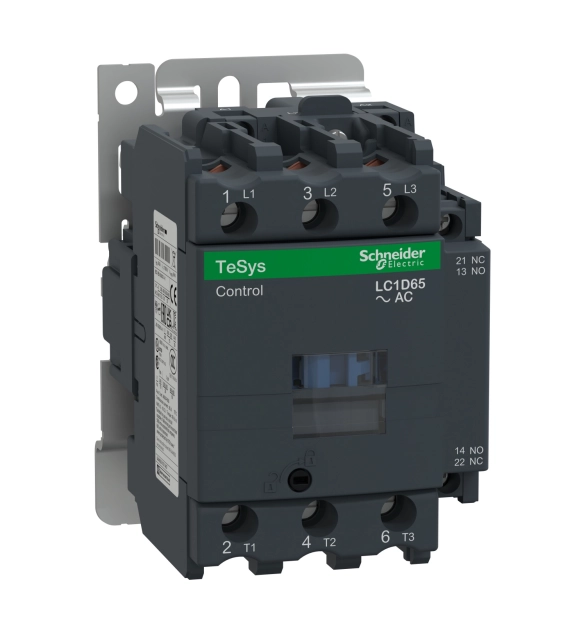

SCHNEIDER ELECTRIC Contactor TeSys Deca, 3P(3NO), AC-3/AC-3e/ <=440V 65A, 110V AC 50/60Hz coil, screw clamp terminals

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated operation power at AC-3, 400 V
    18.5
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    440
  • Rated control supply voltage Us at AC 60HZ
    440
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    FALSE
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-4, 400 V
    18
  • Rated operation power at AC-4, 400 V
    7.5
  • Rated operation current Ie at AC-1, 400 V
    50
  • Rated operation current Ie at AC-3, 400 V
    38

TeSys Deca contactor, 3 poles (3NO),for motor control applications 50A/690V,AC-3 33kW@690V. and for non-inductive load control applications up to 80A@60℃ in category AC-1. It provides a 48V 50/60Hz AC coil,1NO/1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN).
