СКУ: LC1DT20M7

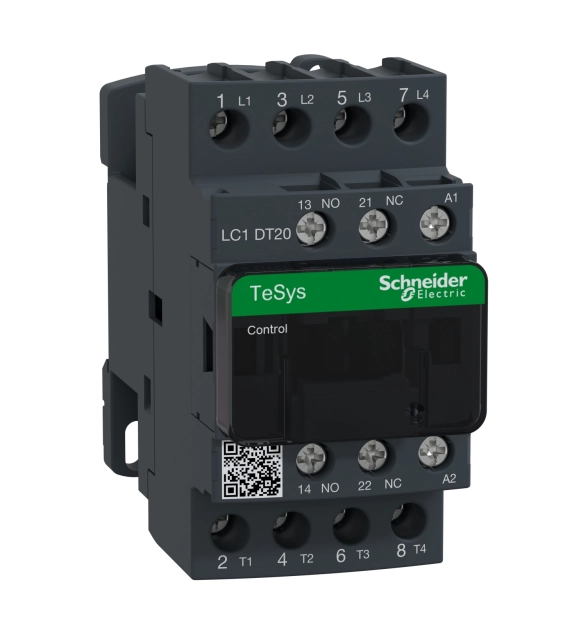

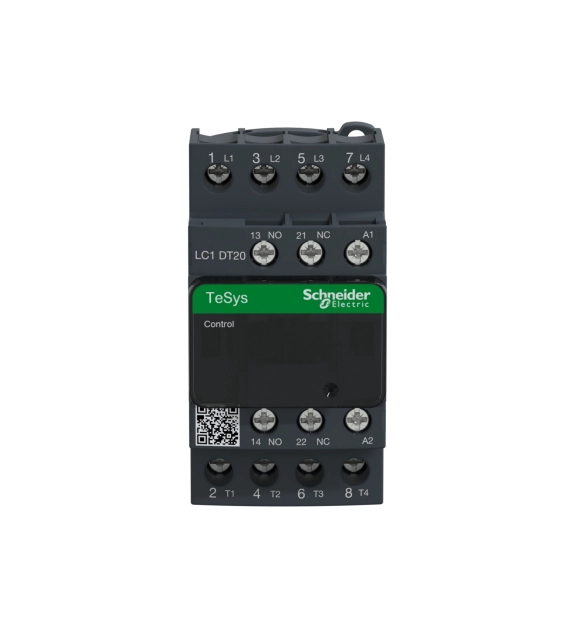

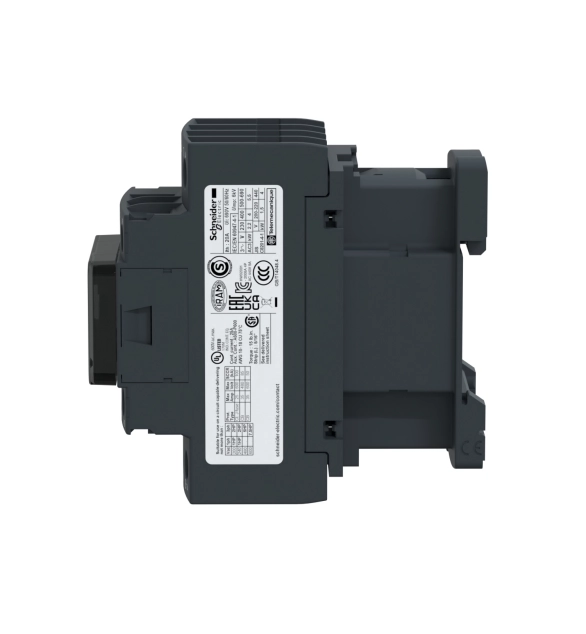

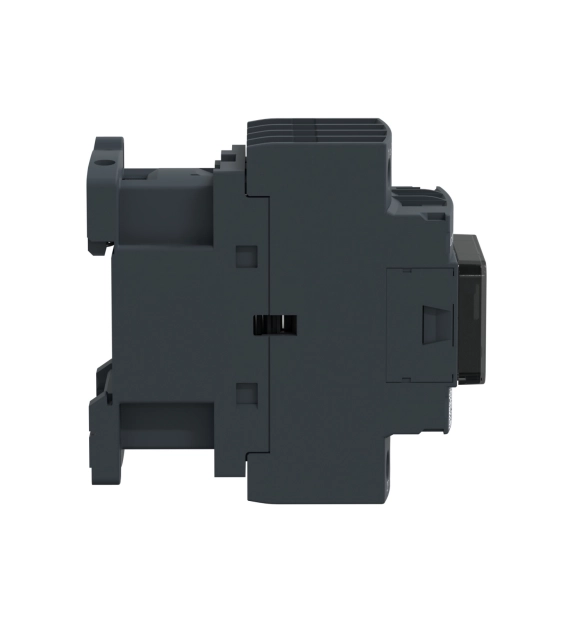

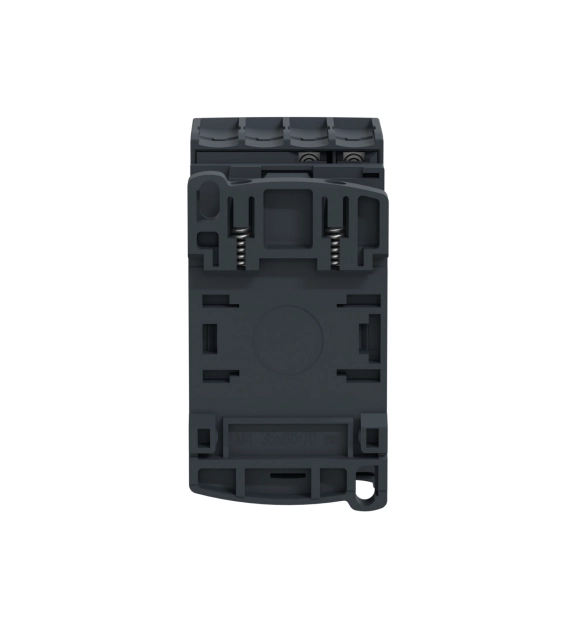

SCHNEIDER ELECTRIC Contactor - 4P(4NO), AC-1, <=440V 20A, 220VAC 50/60 Hz coil
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Voltage type for actuating
EV000460
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Rated operation power at AC-3, 400 V
45
-
Modular version
FALSE
-
Rated control supply voltage Us at AC 50HZ
115
-
Rated control supply voltage Us at AC 60HZ
115
-
Number of normally closed contacts as main contact
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-4, 400 V
32
-
Rated operation power at AC-4, 400 V
15
-
Rated operation current Ie at AC-1, 400 V
125
-
Rated operation current Ie at AC-3, 400 V
95
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 95A/690V AC-3/AC-3e (45kW/400V). It provides a 115V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts, power connection by screw terminals and control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Sustainability compliant. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
