СКУ: LC1DT80AE7

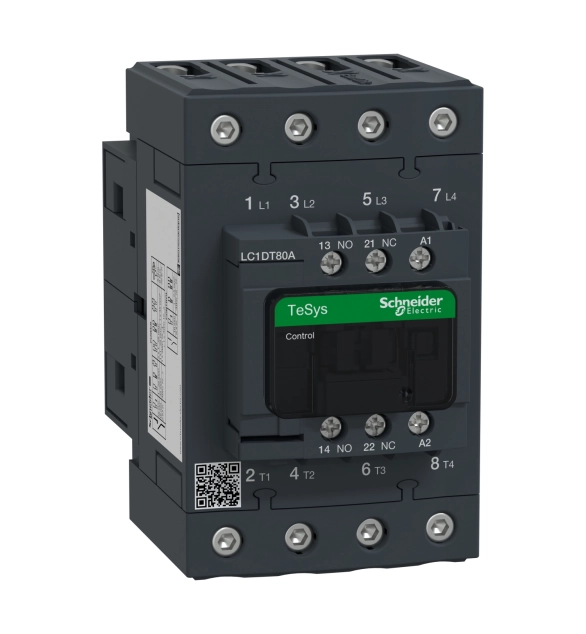

SCHNEIDER ELECTRIC Contactor, 4P(4 NO), AC-1, 0-440V, 80A, 48V AC 50/60Hz coil

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    48
  • Rated control supply voltage Us at AC 60HZ
    48
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    FALSE
  • Rated operation current Ie at AC-1, 400 V
    80
  • Number of normally open contacts as main contact
    4
  • Number of normally closed contacts as main contact

TeSys Deca contactor, 4 poles (4NO), for non-inductive load applications up to 80A/440V AC-1. It provides a 48V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
