SCHNEIDER ELECTRIC Contactor 4P, 25A, 220V AC coil, HS code: 85364900, COO: ID, 0.4kg /PO:40991641/ | Spark & Co
  • 3D
  • 3D
  • 3D
  • 3D
  • 3D
|

СКУ: LC1DT25M7

SCHNEIDER ELECTRIC Contactor 4P, 25A, 220V AC coil, HS code: 85364900, COO: ID, 0.4kg /PO:40991641/

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000461
  • Rated control supply voltage Us at DC
    24
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    FALSE
  • Number of normally closed contacts as main contact
  • Rated operation current Ie at AC-1, 400 V
    25
  • Number of normally open contacts as main contact
    4

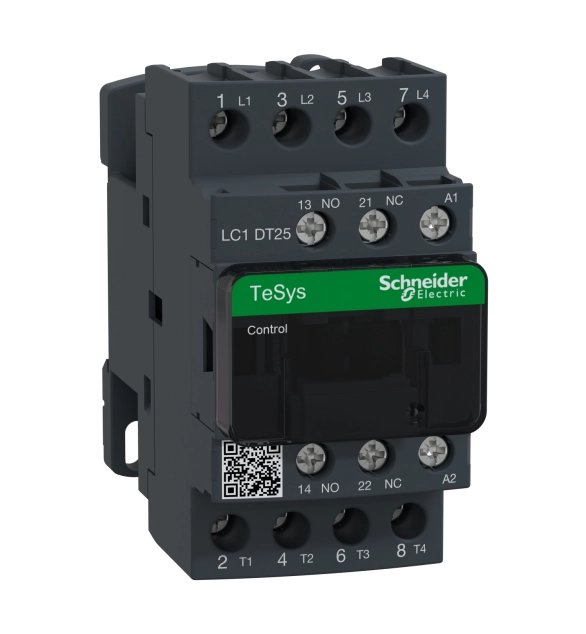

TeSys Deca contactor, 4 poles (4NO), for non-inductive load applications up to 25A/440V AC-1. It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
