SCHNEIDER ELECTRIC Contactor - 3P(3NO), AC-3, <=440V 95A, 24V DC standard coil | Spark & Co
  • 3D
|

СКУ: LC1D95BD

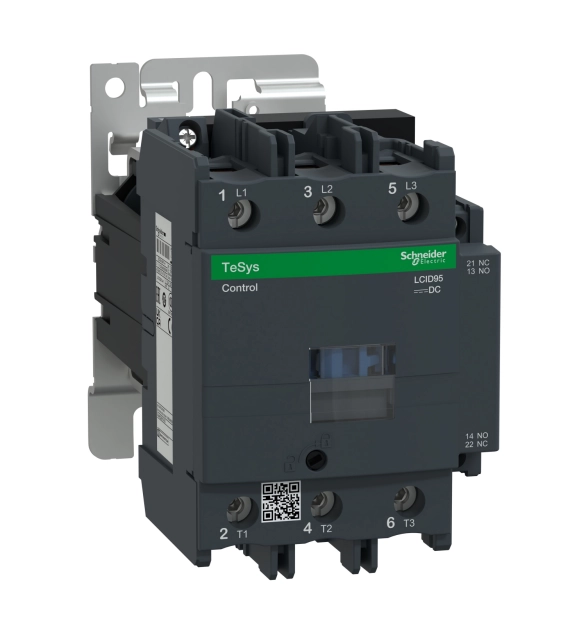

SCHNEIDER ELECTRIC Contactor - 3P(3NO), AC-3, <=440V 95A, 24V DC standard coil

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000460
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Rated control supply voltage Us at AC 50HZ
    230
  • Rated operation power at AC-3, 400 V
    45
  • Rated control supply voltage Us at AC 60HZ
    230
  • Modular version
    FALSE
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-4, 400 V
    32
  • Rated operation power at AC-4, 400 V
    15
  • Rated operation current Ie at AC-1, 400 V
    125
  • Rated operation current Ie at AC-3, 400 V
    95

TeSys Deca contactor, 3P(3NO) for category AC-3/AC-3e applications up to 95A /440V. It provides with 24V 50 Hz coil, with 1NO+1NC auxiliary contacts, power and control connections by screw clamp terminals. It procures high reliability and durability with 10 Mcycles mechanical durability and 1.2 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 85mm x 130mm (H x W x D), mounting on rail or plate. Multi standards certified(CCC,BV,RINA,DNV-GL,LROS,CB,EAC,CSA).
