SCHNEIDER ELECTRIC Contactor, 3P(3 NO), AC-3/AC-3e, <=400V, 50A, 24V AC 50/60Hz coil | Spark & Co
  • 3D
  • 3D
|

СКУ: LC1D50AB7

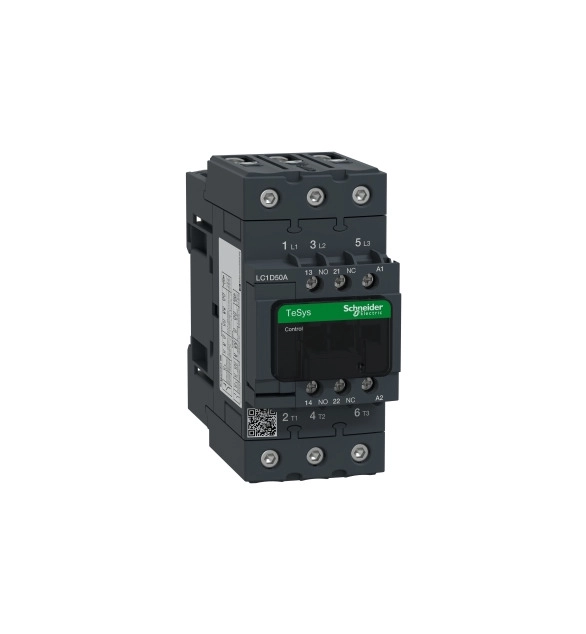

SCHNEIDER ELECTRIC Contactor, 3P(3 NO), AC-3/AC-3e, <=400V, 50A, 24V AC 50/60Hz coil

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated operation power at AC-3, 400 V
    22
  • Voltage type for actuating
    EV000460
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    TRUE
  • Rated control supply voltage Us at AC 50HZ
    42
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-1, 400 V
    80
  • Rated operation current Ie at AC-3, 400 V
    50
  • Rated operation power NEMA
    29.8
  • Rated operation current Ie at AC-4, 400 V
    50
  • Rated operation power at AC-4, 400 V
    22

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 50A/440V AC-3 (37kW@400V). It provides a 42V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
