СКУ: LC1D09U7

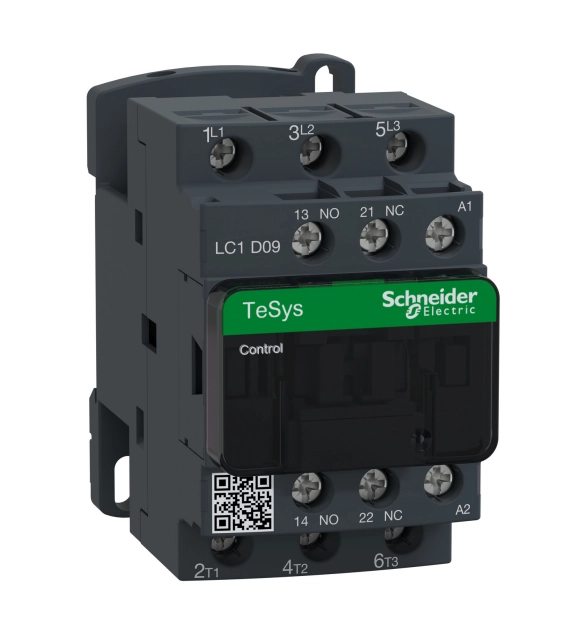

SCHNEIDER ELECTRIC Contactor, 3P(3 NO), AC-3/AC-3e, 0-440V, 9A, 240VAC 50/60Hz coil
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Rated operation power at AC-3, 400 V
4
-
Voltage type for actuating
EV000460
-
Rated control supply voltage Us at AC 50HZ
240
-
Rated control supply voltage Us at AC 60HZ
240
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Modular version
FALSE
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-1, 400 V
25
-
Rated operation current Ie at AC-3, 400 V
9
-
Number of normally closed contacts as main contact
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW/400V). It provides a 240V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
