SCHNEIDER ELECTRIC Contactor - 3P, AC-3, <= 440V, 9A, 1 NC aux., 115 V AC coil | Spark & Co
  • 3D
|

СКУ: LC1K09015FE7

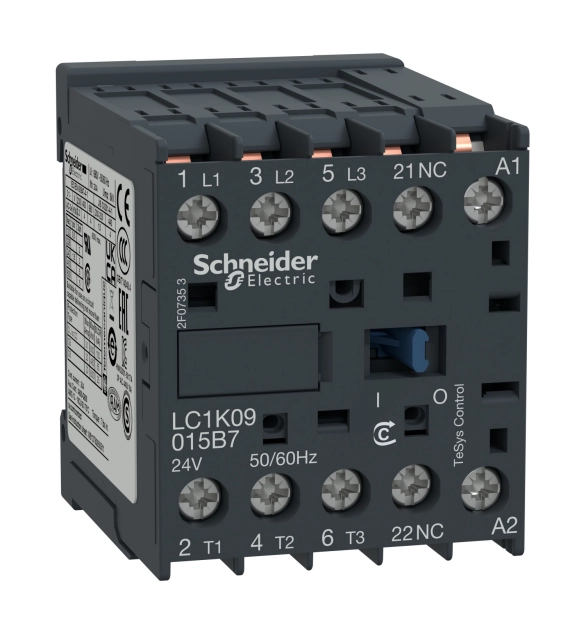

SCHNEIDER ELECTRIC Contactor - 3P, AC-3, <= 440V, 9A, 1 NC aux., 115 V AC coil

  • Brand
    Schneider Electric
  • Rated operation power at AC-3, 400 V
    4
  • Voltage type for actuating
    EV000460
  • Number of auxiliary contacts as normally closed contact
    1
  • Modular version
    FALSE
  • Rated control supply voltage Us at AC 50HZ
    115
  • Rated control supply voltage Us at AC 60HZ
    115
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-3, 400 V
    9
  • Rated operation power at AC-4, 400 V
    2.2
  • Rated operation current Ie at AC-1, 400 V
    20
  • Rated operation current Ie at AC-4, 400 V
    6
  • Type of electrical connection of main circuit
    EV003963
  • Number of auxiliary contacts as normally open contact
  • Number of normally closed contacts as main contact

TeSys K contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW/400V), and for non-inductive load control applications up to 20A/690V AC-1. It provides a 115V 50/60Hz AC coil,1NC built-in auxiliary contact, connection by solder pins for printed circuit boards. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).
