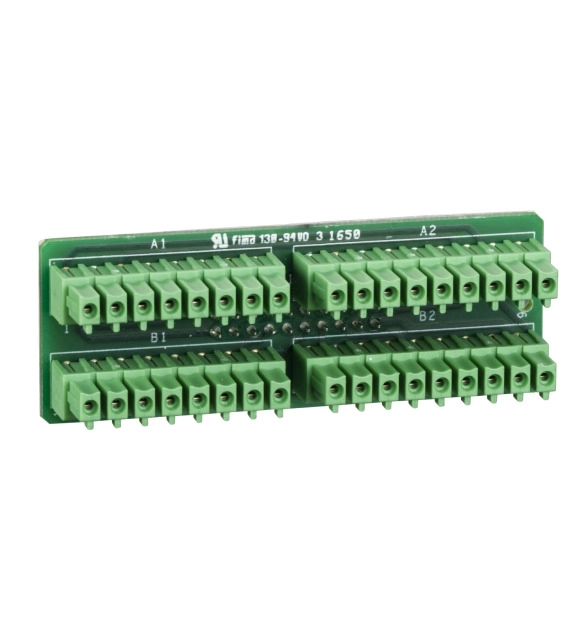

SCHNEIDER ELECTRIC Connector HE10, Modicon STB

• Brand
  Schneider Electric
• Type of electric connection
  EV000415
• SIL according to IEC 61508
  EV000494
• Performance level according to EN ISO 13849-1
  EV000494
• Explosion safety category for dust
  EV000494
• Explosion safety category for gas
  EV000494
• Appendant operation agent (Ex ia)
  FALSE
• Appendant operation agent (Ex ib)
  FALSE
• Suitable for safety functions
  FALSE
• Supply voltage DC
  24
• Analogue input, thermocouple
  FALSE
• Analogue input, resistor
  FALSE
• Short-circuit protection, digital outputs available
  FALSE
• Voltage type of supply voltage
  EV000509
• Number of analogue outputs
  2
• Number of analogue inputs
  4
• Type of digital output
  EV000511
• Number of digital outputs
  4
• Number of digital inputs
  4
• Analogue input, resistor temperature
  TRUE
• Analogue input signal configurable
  TRUE
• Type of voltage (input voltage)
  EV000461
• Type of output voltage
  EV000460
• Supply voltage AC 50 Hz
  24
• Supply voltage AC 60 Hz
  24
• Height
  87
• Input current at signal 1
  0.5
• Time delay at signal exchange
  200
• Analogue input, current
  TRUE
• Analogue output, voltage
  TRUE
• Resolution of the analogue outputs
  13
• Analogue output signal configurable
  TRUE
• Resolution of the analogue inputs
  13
• Analogue output, current
  TRUE
• Output voltage at digital output
  240
• Depth
  61.6
• Digital in-/outputs, configurable
  FALSE
• Analogue input, voltage
  TRUE
• Width
  70.2
• Output current at digital output
  3
• Permitted voltage at input
