СКУ: ABFTE20SP200

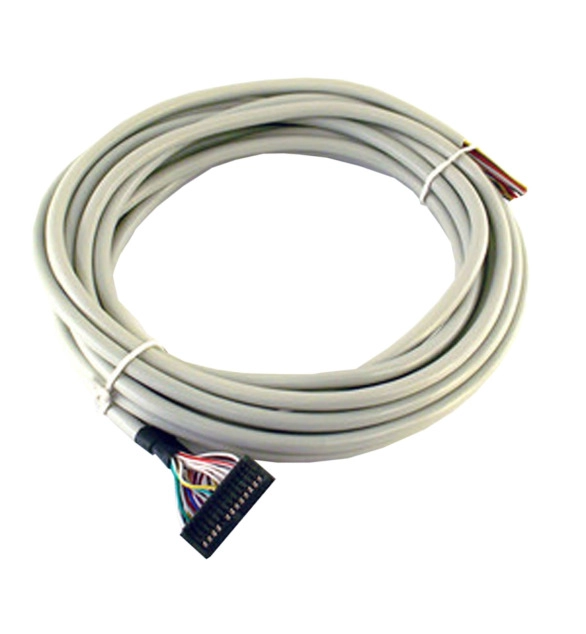

SCHNEIDER ELECTRIC Connection cable - Twido discrete output to Telefast, 2xHE10, 2m.
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Degree of protection (IP)
EV006405
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Width
36
-
Height
125
-
Rail mounting possible
TRUE
-
Voltage type of supply voltage
EV000460
-
Modular version
FALSE
-
Suitable for safety functions
TRUE
-
Direct mounting possible
TRUE
-
Short-circuit-proof
TRUE
-
Secondary voltage adjustable
FALSE
-
Nominal value output voltage 1
24
-
Wall mounting possible
FALSE
-
1st secondary output voltage
24
-
Output voltage stabilized
FALSE
-
Nominal value output current 1
10
-
Max. output current 1
10
-
Power output
120
-
Stabilized
FALSE
-
Rated supply voltage at AC 50 Hz
200
-
Rated supply voltage at AC 60 Hz
200
-
Depth
113
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a connection cable between plc and passive and relay sub-bases with 16 channels. It is pre-equipped with one1 connector 20-way HE10 at sensor side and 1 connector 20-way HE10 at plc side. It is used to connect the digital outputs between ABE7 sub-bases and Modicon M221 and Twido PLCs, and Modicon TM3 modules. It measures 3m. It weighs 0.210kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. It is suitable for use with TWDDDO16TK, TWDDDO32TK, TM221M32TK, TM221ME32TK, TM3DQ16TK, TM3DQ32TK. It is delivered in 1 package (PCE type). It installs on the HE10 connectors of the subbase. Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
