СКУ: 31148

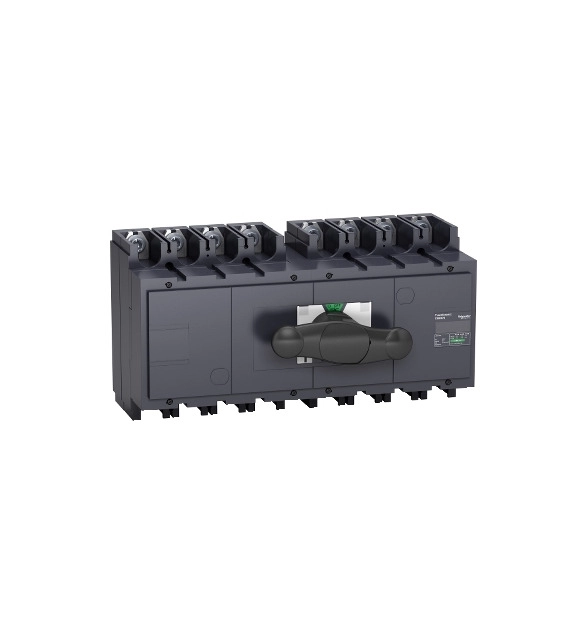

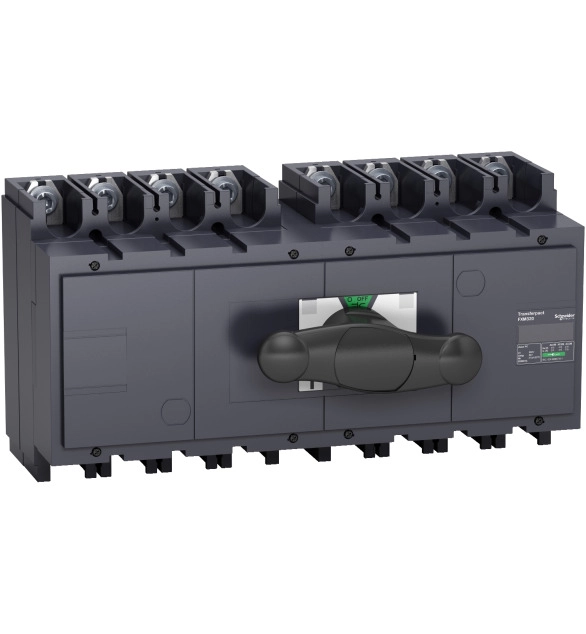

SCHNEIDER ELECTRIC Complete manual source changeover assembly, FXM320, Compact INS320 switch disconnectors, 320A, 3P
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Suitable for intermediate mounting
FALSE
-
Suitable for floor mounting
FALSE
-
Suitable for distribution board installation
TRUE
-
Type of control element
EV004095
-
Material housing
EV000139
-
Number of poles
4
-
Degree of protection (IP), front side
EV006415
-
With zero (off) position
TRUE
-
With retraction in 0-position
FALSE
-
Model
EV009208
-
Complete device in housing
TRUE
-
Suitable for front mounting
FALSE
-
Rated permanent current Iu
200
FXM500 is a complete manual source changeover assembly for two Compact INS500 3 poles switch disconnectors. It provides an easy way to implement source changeover functions with small size, taking up less room in the switchboard. The operational current is 500A at 690VAC 50/60Hz, in categories AC22A/AC23A. The operational current is 500A at 125VDC (2 poles in series) or at 250VDC (4 poles in series), in categories DC22A/DC23A. There is a single 3 position rotary handle that controls the two switch disconnectors (normal source ON, OFF, replacement source ON). A complete source changeover assembly can be ordered with a single catalogue number. A complete source changeover assembly can be ordered with a single catalogue number.
