СКУ: 50439

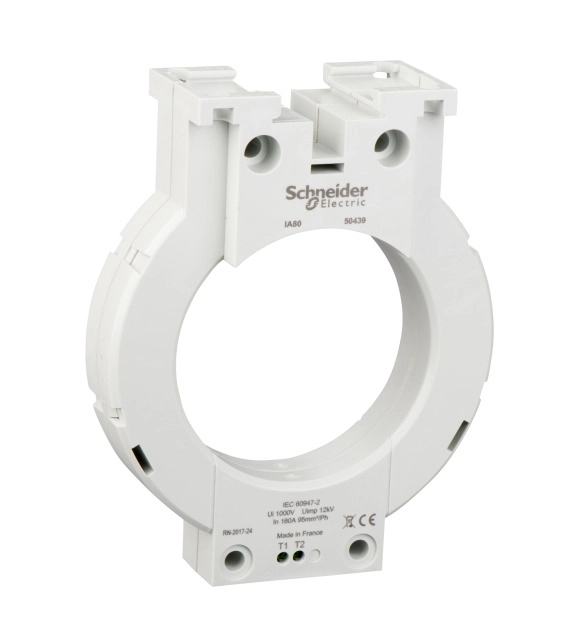

SCHNEIDER ELECTRIC Closed toroid IA, Ø80mm, HS code: 85043180, COO: FR, 0.33kg /PO:40821073/
-
Brand
Schneider Electric
-
Calibrated
TRUE
-
Model
EV009454
-
Number of primary inputs
4
-
Accuracy class
EV000599
-
With shock protection
TRUE
-
With copper rail
FALSE
-
Secondary connection
EV000154
-
Snap mounting
TRUE
-
Primary rated current
160
-
Opening diameter
80
-
Secondary rated current
0.16
This toroid is dedicated to Vigilohm Insulation Fault locators, and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 160A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 80mm and the weight is 0.420kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 40 millimetres. The maximum cross section per phase (R, S, T, N) is 95mm² for a copper conductor.
