СКУ: C11E44V100B

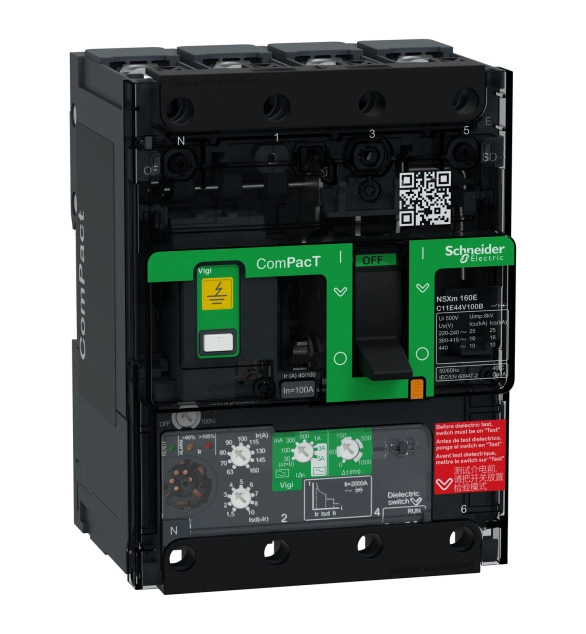

SCHNEIDER ELECTRIC Circuit breaker ComPacT NSXm E (16kA/415VAC), 4P 4d, 100A, Micrologic 4.1
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Device construction
EV009211
-
Motor drive integrated
FALSE
-
Motor drive optional
FALSE
-
Degree of protection (IP)
EV006415
-
Number of poles
4
-
Rated permanent current Iu
100
-
Type of control element
EV000421
-
DIN rail (top hat rail) mounting optional
FALSE
-
Position of connection for main current circuit
EV007926
-
With switched-off indicator
TRUE
-
Overload release current setting
40
-
Complete device with protection unit
TRUE
-
Rated voltage
440
-
Suitable for DIN rail (top hat rail) mounting
TRUE
-
Adjustment range short-term delayed short-circuit release
60
-
Integrated earth fault protection
TRUE
-
Adjustment range undelayed short-circuit release
1500
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
16
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
-
Number of auxiliary contacts as change-over contact
This ComPacT NSXm device is a 4 poles circuit breaker designed to optimize space and breaking capacity. The rated current (In) is 100A. The breaking capacity (Icu) is 16kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. Power connections are compression lugs or busbar connections. The product can be installed on a DIN rail or a mounting plate. It embeds new spring type auxiliaries externally visible. This circuit breaker is equipped with a MicroLogic 4.1 trip unit. The dimensions are 108mm (W) x 144mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications. ComPacT NSXm is part of the global Schneider Electric Environmental Program.
