СКУ: C63F31M500

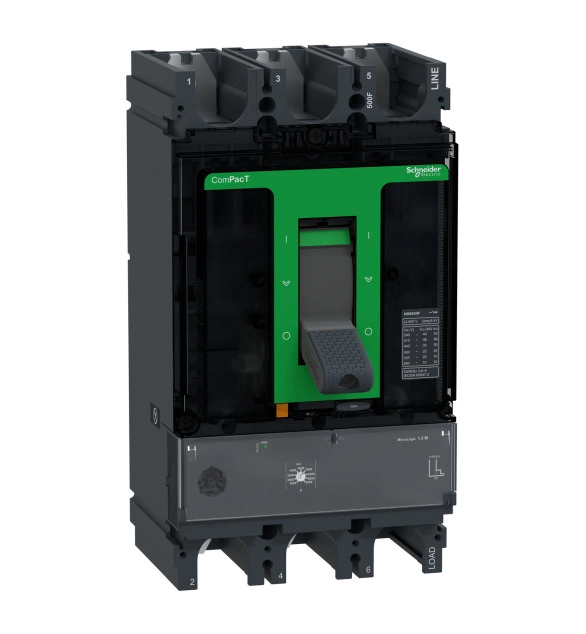

SCHNEIDER ELECTRIC Circuit breaker ComPacT NSX630F, 36kA, MicroLogic 1.3 M trip unit 500A, 3P 3d

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Device construction
    EV009211
  • Rated operating voltage
    690
  • Width
    140
  • Degree of protection (IP)
    EV006415
  • Rated permanent current Iu
    500
  • With integrated under voltage release
    FALSE
  • Type of control element
    EV000154
  • Depth
    110
  • With integrated auxiliary switch
    FALSE
  • With thermal protection
    FALSE
  • Phase failure sensitive
    FALSE
  • Switch off technique
    EV000101
  • Height
    255
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    36
  • Adjustment range undelayed short-circuit release
    6500

This ComPacT NSX630F is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 1.3 M trip unit, with 500A rating. MicroLogic 1.3 M trip unit provides an adjustable short time protection and a fixed instantaneous protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX630F is part of Schneider Electric EcoStruxure Power architecture.
