SCHNEIDER ELECTRIC Circuit breaker ComPacT NSX250R, 200kA/415VAC, 3P, MicroLogic 5.2E trip unit 250A | Spark & Co
  • 3D
|

СКУ: C25R35E250

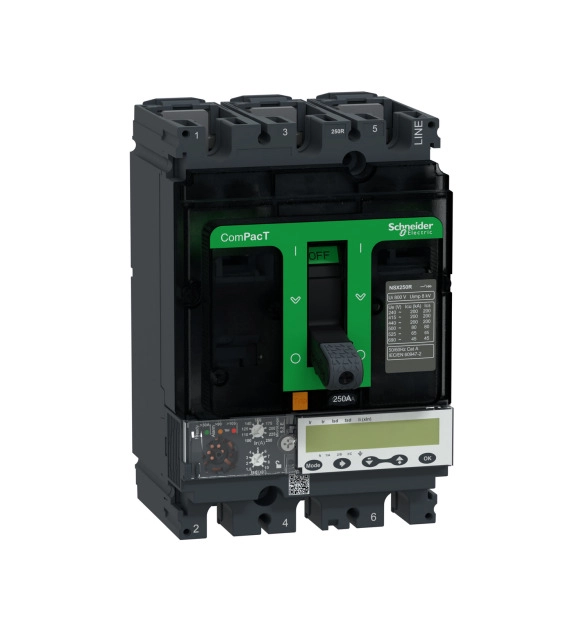

SCHNEIDER ELECTRIC Circuit breaker ComPacT NSX250R, 200kA/415VAC, 3P, MicroLogic 5.2E trip unit 250A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Device construction
    EV009211
  • Rated operating voltage
    690
  • Degree of protection (IP)
    EV006415
  • With integrated under voltage release
    FALSE
  • Width
    105
  • Type of control element
    EV000154
  • With integrated auxiliary switch
    FALSE
  • Phase failure sensitive
    TRUE
  • With thermal protection
    TRUE
  • Height
    161
  • Switch off technique
    EV000101
  • Overload release current setting
    100
  • Rated permanent current Iu
    220
  • Depth
    86
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    200
  • Adjustment range undelayed short-circuit release
    3300

This ComPacT NSX250R is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 200kA rms at 415VAC 50/60Hz and 45kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.2 trip unit, with 160A rating. MicroLogic 2.2 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX250R is part of Schneider Electric EcoStruxure Power architecture.
