СКУ: MTN644992

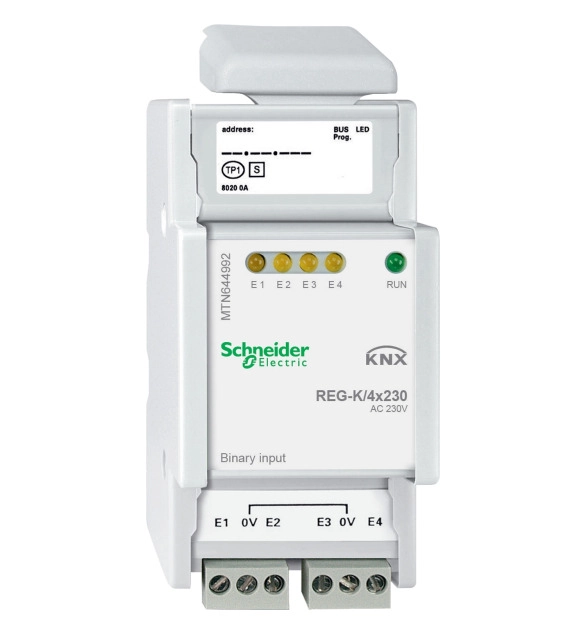

SCHNEIDER ELECTRIC Binary input module REG-K/4x230, light grey
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
2.5
-
With LED indication
TRUE
-
Bus system KNX radio
FALSE
-
Bus system Powernet
FALSE
-
Bus system LON
FALSE
-
Mounting method
EV006471
-
Bus system radio frequent
FALSE
-
Other bus systems
EV000494
-
Radio frequent bidirectional
FALSE
-
With bus connection
TRUE
-
Bus system KNX
TRUE
-
Number of inputs
4
-
Bus module detachable
FALSE
-
External signal voltage necessary
FALSE
-
LED controlling
FALSE
-
Type of voltage (input voltage)
EV000460
-
Input voltage
KNX Binary input REG-K/4x230. For connecting four conventional devices with AC 230 V outputs to the KNX. With integrated bus coupler and plug-in screw terminals. The input voltage level is displayed at each input with a yellow LED. A green LED indicates that the device is ready for operation once the application has been loaded. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. a data rail is not necessary. KNX software functions:. Switching, dimming or blind control via 1 or 2 inputs. Positioning values for blind control (8-bit). Pulse edges with 1-, 2-, 4-, or 8-bit telegrams. Differentiation between short/long operation. Initialisation telegram. Cyclical sending. Pulse edges with 2-byte telegrams. 8-bit linear regulator. Disable function. Break/make contact. Debounce time. Input voltage: AC 230 V, 50-60Hz. Inputs: 4. Input current: AC 12 mA. 0 signal: /equal 160 V. Cable length: max. 100 m. Device width: 2.5 modules, approx. 45 mm. Contents: With bus connecting terminal and cable cover. Colour: light grey.
