СКУ: TMC4TI2

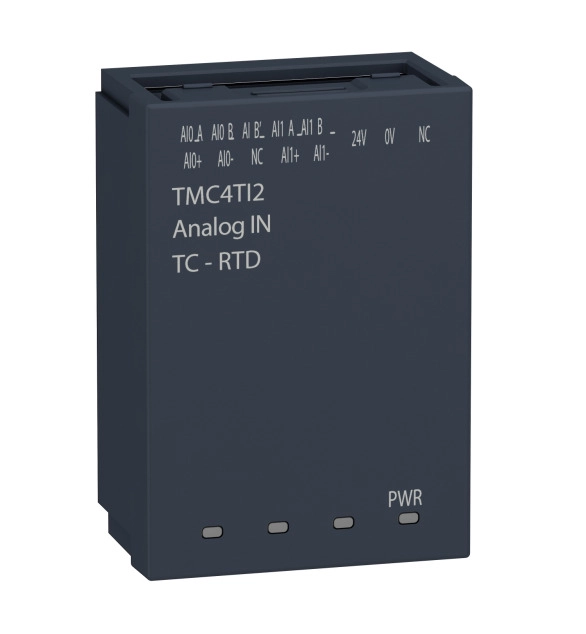

SCHNEIDER ELECTRIC Analogue input cartridge, Modicon M241, 2 temperature inputs
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Height
50
-
Analogue inputs configurable
FALSE
-
Analogue outputs configurable
FALSE
-
Width
34
-
Input signal, configurable
FALSE
-
Input, resistance thermometer
FALSE
-
Output signal configurable
FALSE
-
Resolution of the analogue outputs
12
-
Input, current
TRUE
-
Input, voltage
TRUE
-
Number of analogue inputs
2
-
Input, thermocouple
TRUE
-
Input, resistor
TRUE
-
Output, voltage
FALSE
-
Output, current
FALSE
-
Resolution of the analogue inputs
14
-
Depth
21
-
Number of analogue outputs
This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue input cartridge is for logic controllers. It provides 2 temperature inputs with 14bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. This analogue input cartridge is compatible with Modicon M241C PLC. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.
