СКУ: TMC2TI2

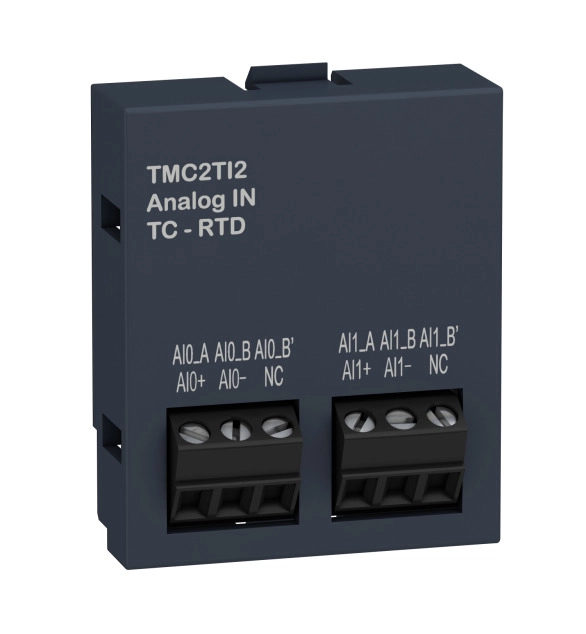

SCHNEIDER ELECTRIC Analogue input cartridge, Modicon M221, 2 temperature inputs
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Depth
15
-
Analogue inputs configurable
FALSE
-
Analogue outputs configurable
FALSE
-
Height
41
-
Input signal, configurable
FALSE
-
Input, resistance thermometer
FALSE
-
Output signal configurable
FALSE
-
Resolution of the analogue outputs
12
-
Input, current
TRUE
-
Input, voltage
TRUE
-
Number of analogue inputs
2
-
Input, thermocouple
TRUE
-
Input, resistor
TRUE
-
Output, voltage
FALSE
-
Output, current
FALSE
-
Width
35
-
Resolution of the analogue inputs
14
-
Number of analogue outputs
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue input cartridge provides 2 temperature inputs with 14bit input resolution. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with Modicon M221 through intuitive machine programming with EcoStruxure Machine Expert Basic.
