SCHNEIDER ELECTRIC Acti9 comb busbar - 3L+N, 18 mm pitch | Spark & Co
  • 3D
|

СКУ: A9XPH412

SCHNEIDER ELECTRIC Acti9 comb busbar - 3L+N, 18 mm pitch

  • Brand
    Schneider Electric
  • Colour
    EV000202
  • Width in number of modular spacings
    12
  • Insulated
    TRUE
  • Cross section
    16
  • Type of electric connection
    EV000158
  • Suitable for devices with N-conductor
    TRUE
  • Number of phases
    3
  • Number of poles
    4
  • Rated permanent current Iu
    100
  • Suitable for number of devices
    3
  • Suitable for devices with auxiliary switch
    TRUE
  • Module width
    18
  • Max. rated operation voltage Ue
    415
  • Length
    220

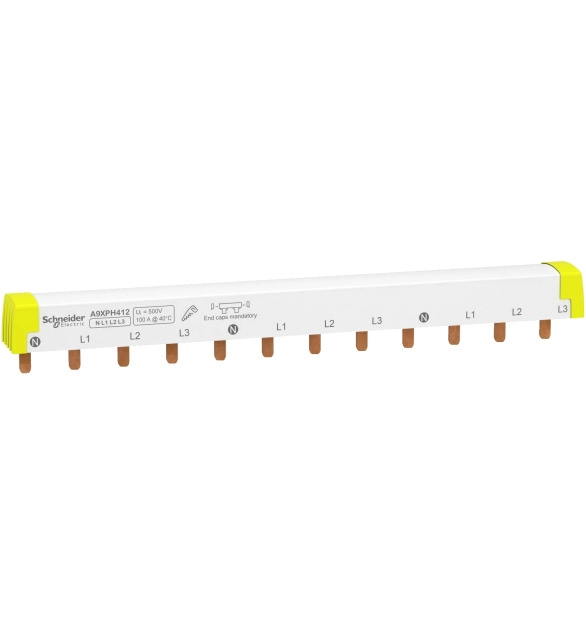

This Acti9 product is a cuttable horizontal comb busbar 12 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to N+3L installations. The type is NL1L2L3 (Neutral, Line). It is a set of 1 device. It is suitable for 3 devices (3P+N). The length is 220mm.The total number of modules of 18mm is 12. The number of phase is 3. The number of poles is 4. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s.
