СКУ: NSYDLM112

Шаси, мод. рамка Modular chassis112m H800xW600

Brand
Schneider Electric
With mounting plate
TRUE
Width
500
Height
700
With cover
TRUE
With mounting rail
TRUE

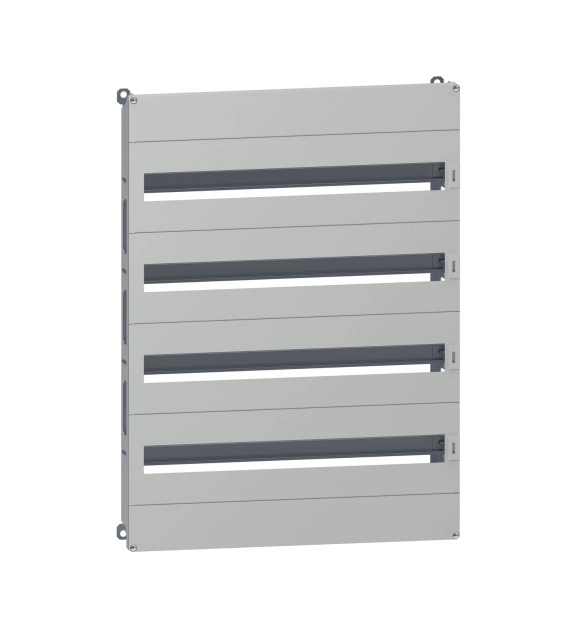

DLA chassis for PanelSeT S3D, PanelSeT CRN, PanelSeT S3X and PanelSeT PLM enclosures The chassis is to be fixed on front of enclosure by fixing elements with supports location The width is 460mm The height is 680mm Number of 18mm modules is 86 (1 module = 2 steps = 18 mm) Number of horizontal rows is 4 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The front panel is made from self-extinguishing insulating and chassis structure and rails are made from steel The front has a grey (RAL 7035) color Number of cut-outs is 4 The kit is made up of 1 chassis structure, 4 front panels with 35mm DIN rails, 2 finish covers and 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²
