СКУ: 465706
RJ45 ins. 8/8 Cat 6
-
Degree of protection (IP)
EV006405
-
Mechanical coding
FALSE
-
Type of fastening
EV000766
-
Separate earthing connection
FALSE
-
Suitable for number of connectors
1
-
Brand
Merten
-
Assembly arrangement
EV000078
-
With dust cover
FALSE
-
Width of device
72
-
Height of device
72
-
Type of connector
EV000013
-
Category
EV002393
-
Outlet direction
EV005271
-
Mounting method shielding connection
EV000173
-
Depth of device
29
-
Duct installation
TRUE
-
Colour
EV000290
-
Colour coding
TRUE
-
Floor box/sub-floor mounted
TRUE
-
With label space
FALSE
-
Shielded buses
TRUE
-
Connection type
EV007510
-
Shielded housing
TRUE
-
With buses/couplings
TRUE
-
Design suitable
TRUE
-
Separate strain relief
TRUE
-
Surface mounting
FALSE

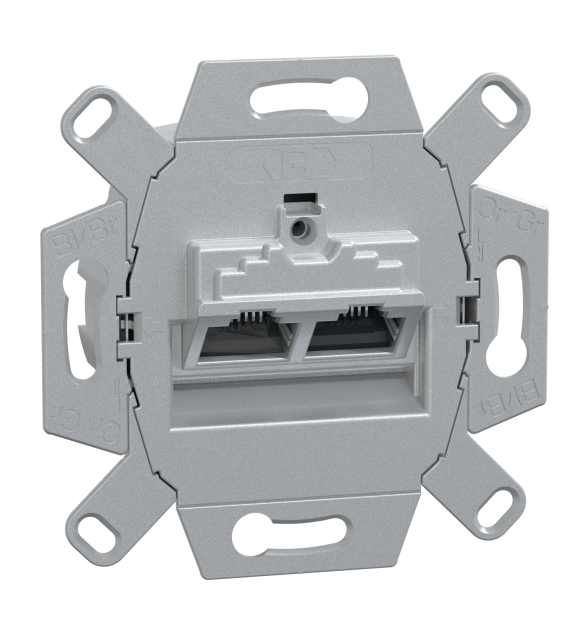

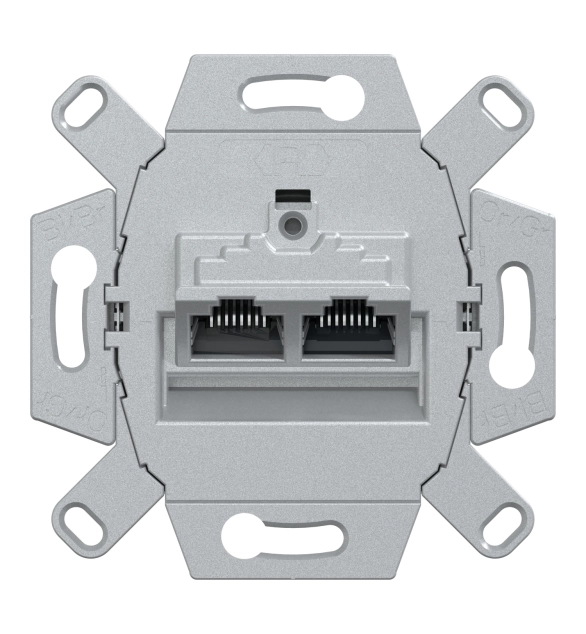

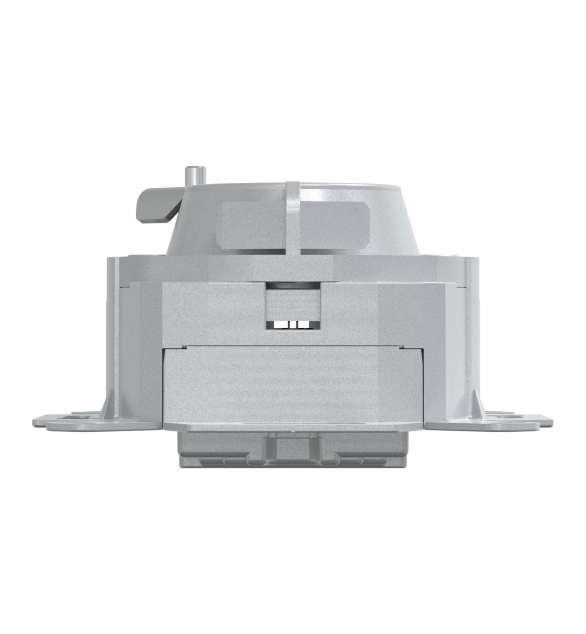

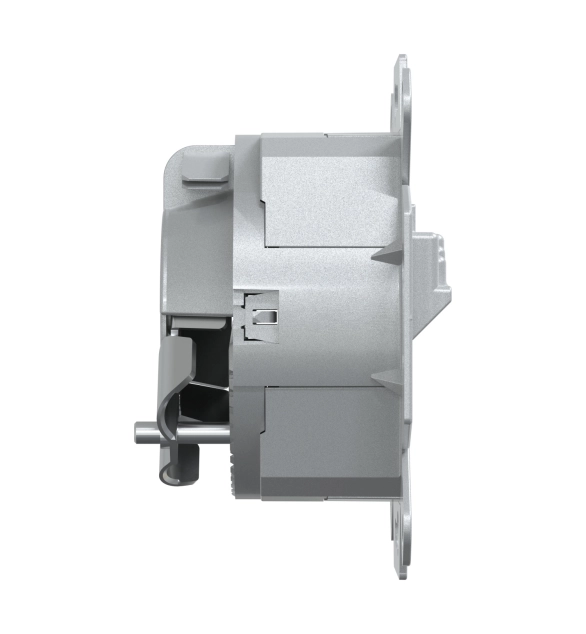

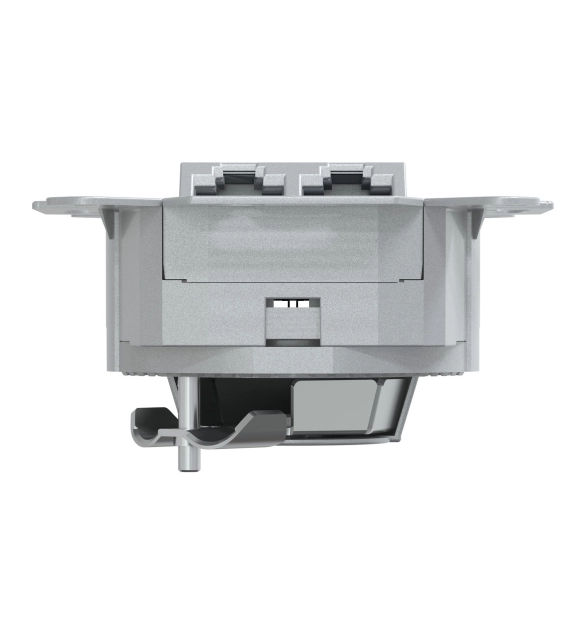

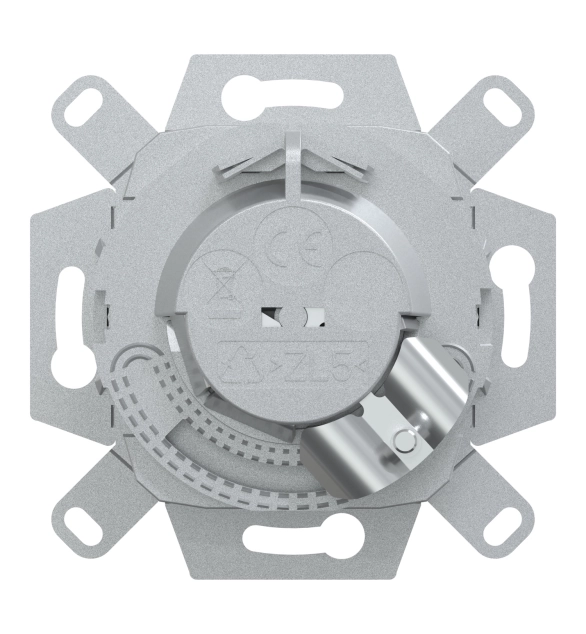

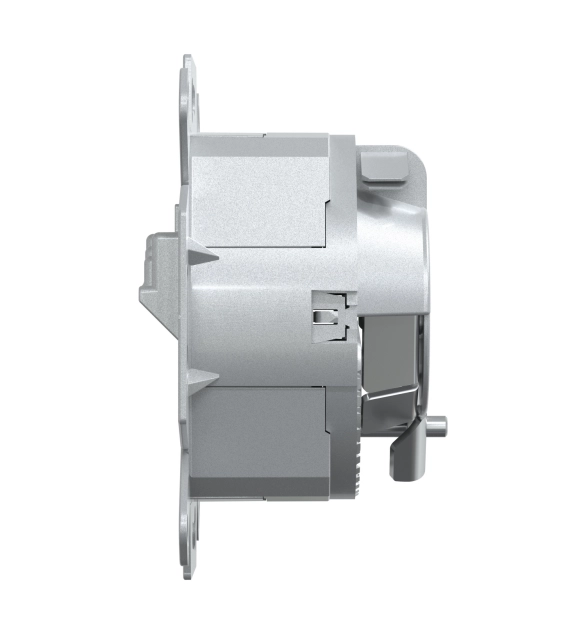

Discover the Merten data socket-outlet insert by Schneider Electric. It has a Category-6 RJ45 (8 wires) data socket type. This device is designed to be flush mounted and has a screw/claw fixing mode. The dimensions are (W) 72mm x (H) 72mm x (D) 29mm. It reaches IP20 degree of protection. It is made up of metal housing. The color of the product is grey/aluminium. Merten Inserts covers all areas of inserts and can be combined with all various centerplates, outerframes of Merten System M , Merten Artec, Merten Antique. The QuickFlex flush-mounted insert for Merten switches is a modular component designed by Schneider Electric.
