СКУ: NSYCR50WU2C
Резистивен нагревател Resist.heat.Insul.50W,110-250V
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width
60
-
Voltage type
EV000460
-
Degree of protection (NEMA)
EV000599
-
Depth
90
-
Height
110
-
Operating voltage at AC 50 Hz
110
-
Operating voltage at AC 60 Hz
110
-
With room temperature controller
FALSE
-
With fan
FALSE
-
Continuous heating power at 10 °C
55
-
Rated power
55

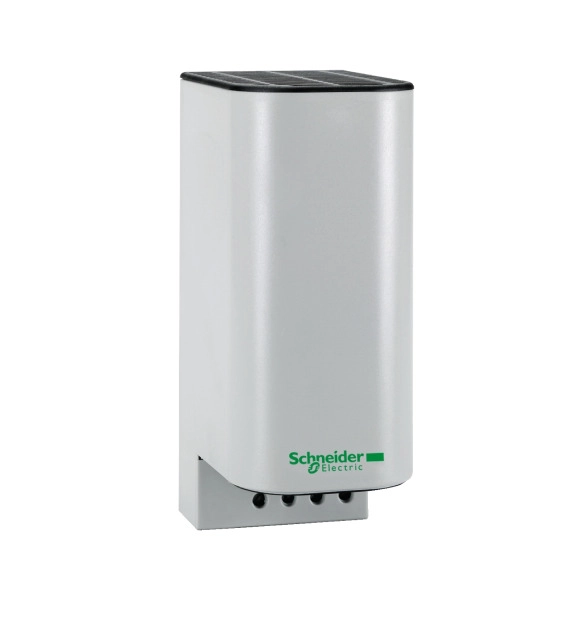

Resistance heater 50W, 110,250 V AC 50/60 Hz for ClimaSys CR Thermal Management System The product has extruded aluminium body and plastic cover Fixing by clips in vertical operating position The product width is 60mm, height is 110mm and depth is 90mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit Conforms with UL and VDE certification Ingress protection rating IP20 Ambient air temperature for operation -40-70 °C Conforms with UL and VDE certification Conforms class II electrical insulation class
