СКУ: LC2DT40GD

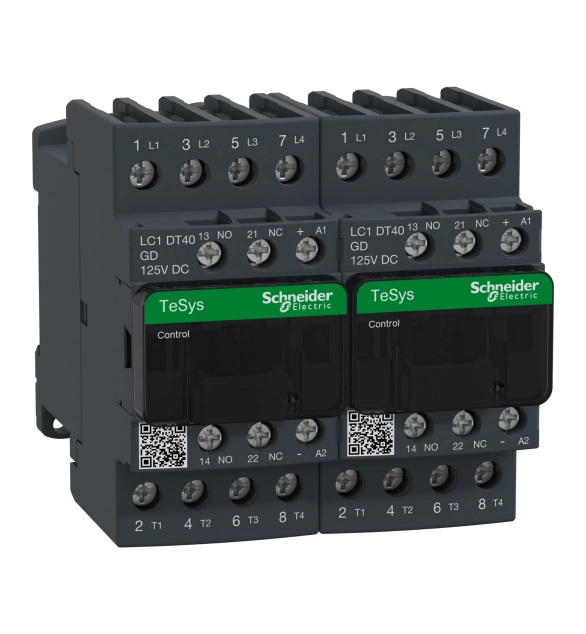

Реверсивен контактор 40A 4P AC1 24V 50/6

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Degree of protection (IP)
    EV006405
  • Voltage type for actuating
    EV000461
  • Type of electrical connection for auxiliary- and control current circuit
    EV000415
  • Rail mounting possible
    TRUE
  • Degree of protection (NEMA)
    EV000154
  • Rated control supply voltage Us at DC
    125
  • Function
    EV003958
  • Rated operation current Ie at AC-1, 400 V
    40
  • Number of normally closed contacts as main contact
    2
  • Number of normally open contacts as main contact
    2

TeSys Deca reversing contactor, 4 poles (4NO), for motor control applications up to 40A/440V AC-3/3e (15kW@400V). It is provided with 125V DC coils with electronic control, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), with DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
