Реверсивен контактор 40A 4P AC1 220/230V | Spark & Co
  • 3D
|

СКУ: LC2DT40M7

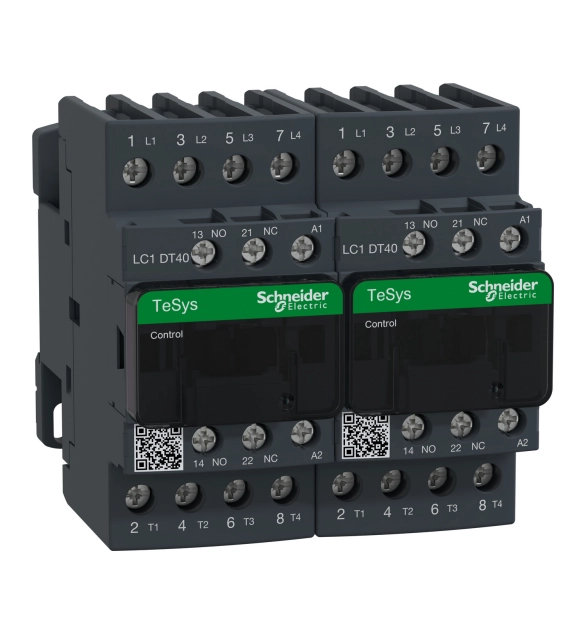

Реверсивен контактор 40A 4P AC1 220/230V

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Degree of protection (IP)
    EV006405
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    220
  • Rated control supply voltage Us at AC 60HZ
    220
  • Type of electrical connection for auxiliary- and control current circuit
    EV000415
  • Rail mounting possible
    TRUE
  • Degree of protection (NEMA)
    EV000154
  • Rated operation current Ie at AC-1, 400 V
    40
  • Number of normally closed contacts as main contact
    2
  • Number of normally open contacts as main contact
    2
  • Function
    EV018202

TeSys Deca changeover contactor, 4 poles (4NO), for non-inductive load applications up to 40A/440V AC-1. It is provided with 220V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), with DIN-rail mounting or screw fixing. With pre-wired changeover power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
