СКУ: LC2D12FE7

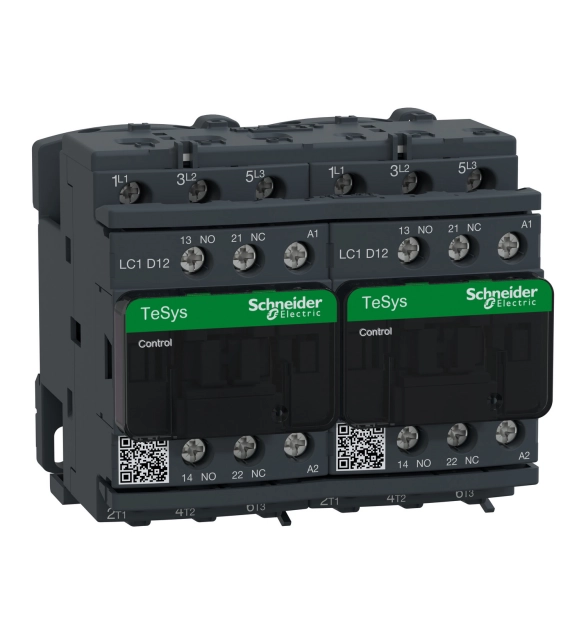

Реверсивен контактор 12A 1F+1O 115V 50/6
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Rated operation power at AC-3, 400 V
5.5
-
Degree of protection (IP)
EV006405
-
Voltage type for actuating
EV000460
-
Type of electrical connection for auxiliary- and control current circuit
EV000415
-
Rail mounting possible
TRUE
-
Degree of protection (NEMA)
EV000154
-
Function
EV003958
-
Rated control supply voltage Us at AC 50HZ
115
-
Rated control supply voltage Us at AC 60HZ
115
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-1, 400 V
25
-
Rated operation current Ie at AC-3, 400 V
12
-
Rated operation power NEMA
5.59
-
Number of normally closed contacts as main contact
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 12A/440V AC-3 (5.5kW/400V). It provides 115V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), with DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
