СКУ: 56226
Релета за защита от остатъчен ток - 500 mA - 130 V
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Number of contacts as change-over contact
1
-
Error registration possible
FALSE
-
Indication of difference current
FALSE
-
With detachable clamps
FALSE
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at AC 50HZ
12
-
Rated control supply voltage Us at AC 60HZ
12
-
Rated frequency
50
-
Rated control supply voltage Us at DC
12
-
Function
EV005830
-
Response value amperage 1
0.03
-
Max. permitted delay-on energization time
4.82
-
Width
72
-
Type of electric connection
EV005755
-
Depth
78
-
Height
72
-
Number of contacts as normally closed contact
-
Rated voltage
-
Min. adjustable delay-on energization time

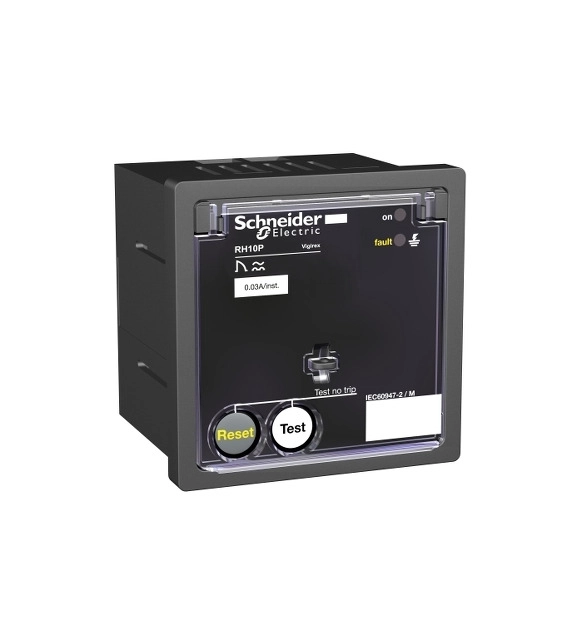

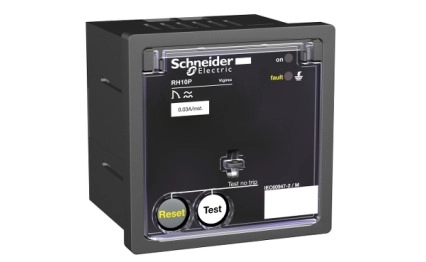

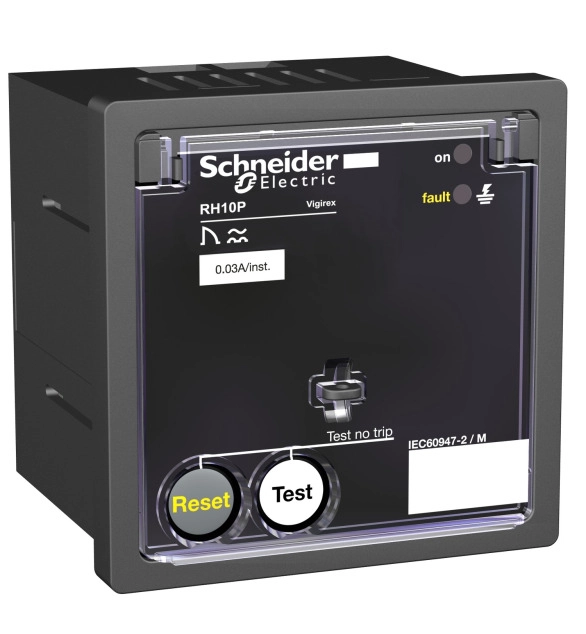

VigiPacT RH10P is a front panel mounting residual current protection relay. It protects against people direct or indirect contact, property fire hazards and motors. It measures the earth leakage current in an electrical installation via its associated toroid. It trips the associated circuit breaker when the set residual operation current is overrun. The operational supply voltage is 110/130VAC 50/60Hz. It is a type A earth-leakage protection class. The current sensitivity (IDn) is fixed to 500mA. The time delay (Dt) is instantaneous. It requires a local manual reset after a fault clearance. The monitored distribution system voltage is up to 1000VAC 50/60/400Hz. It is installed on a front panel switchboard and the protection degree is IP40. It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor.
