СКУ: RE17RMEMU
Реле за време - 0,1s÷10h, SPDT, 250VAC/8A, Uзах: 24÷240VAC, 24VDC
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Depth
72
-
Rated control supply voltage Us at AC 50HZ
24
-
Rated control supply voltage Us at AC 60HZ
24
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at DC
24
-
Height
90
-
Suitable for front mounting
TRUE
-
Width
17.5
-
With semiconductor output
FALSE
-
Pluggable on auxiliary contact block
FALSE
-
Number of outputs, undelayed, change-over contact
1
-
Suitable for DIN rail (top hat rail) mounting
TRUE
-
Outputs, reversible delayed/undelayed
FALSE
-
With plug-in socket
FALSE
-
Function star-delta
FALSE
-
Remote operation possible
FALSE
-
Suitable as remote control
FALSE
-
Time range
0.1
-
Function pulse shaping
FALSE
-
Function delay-on energization
TRUE
-
Function delay on de-energization
TRUE
-
Clock function, starting with pause, variable
TRUE
-
Clock function, starting with pulse, variable
TRUE
-
Function floating contact on de-energization
TRUE
-
Number of outputs, delayed, change-over contact
1
-
Function floating contact on energization
TRUE
-
Nominal current
8
-
Function flashing, starting with pause, fixed time
TRUE
-
Function flashing, starting with pulse, fixed time
TRUE
-
Number of outputs, delayed, normally open contact
-
Number of outputs, delayed, normally closed contact
-
Number of outputs, undelayed, normally open contact
-
Number of outputs, undelayed, normally closed contact

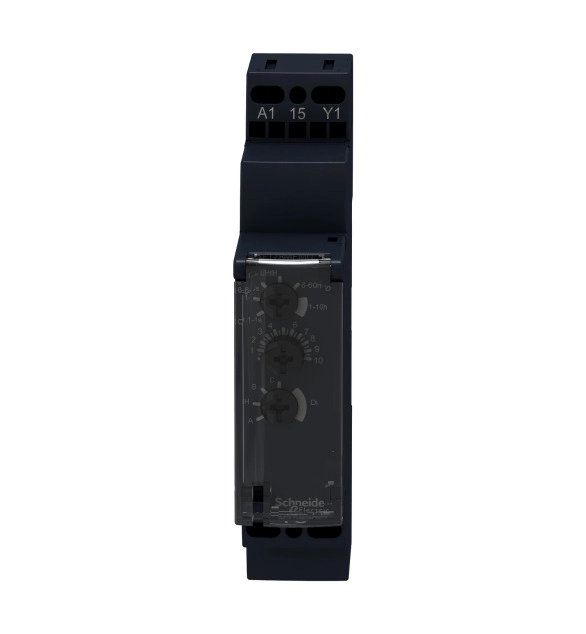

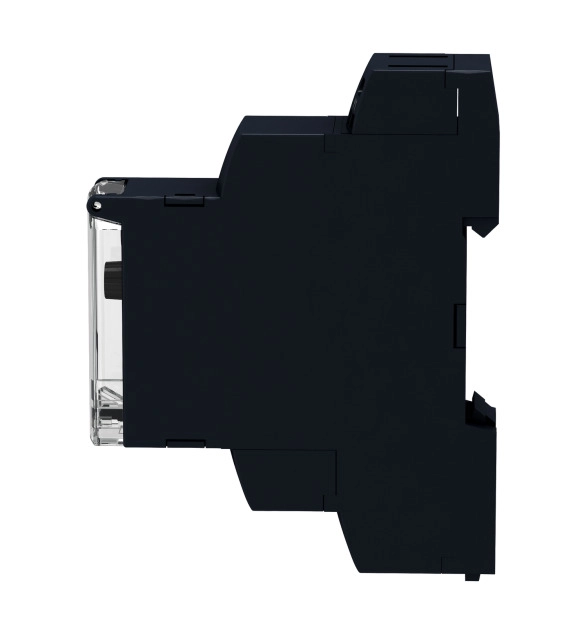

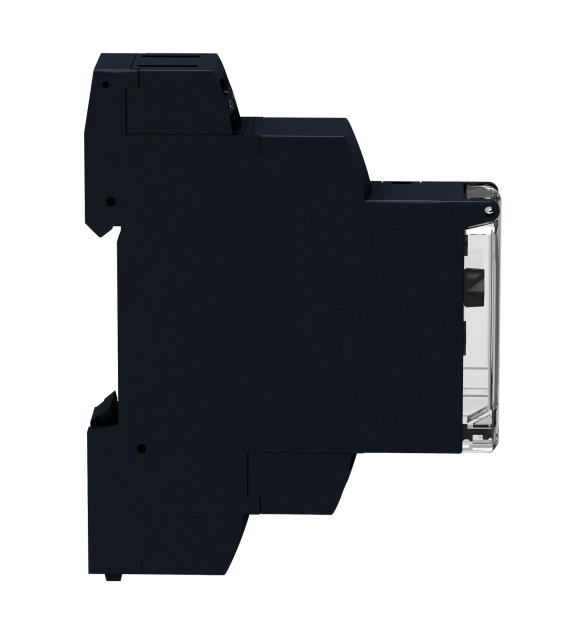

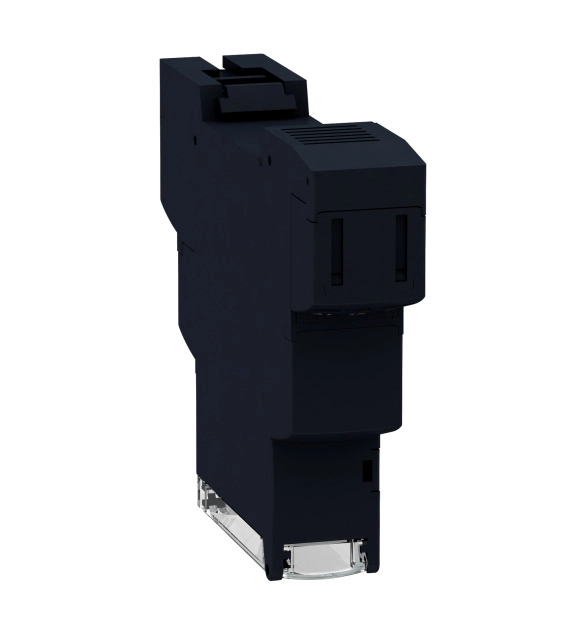

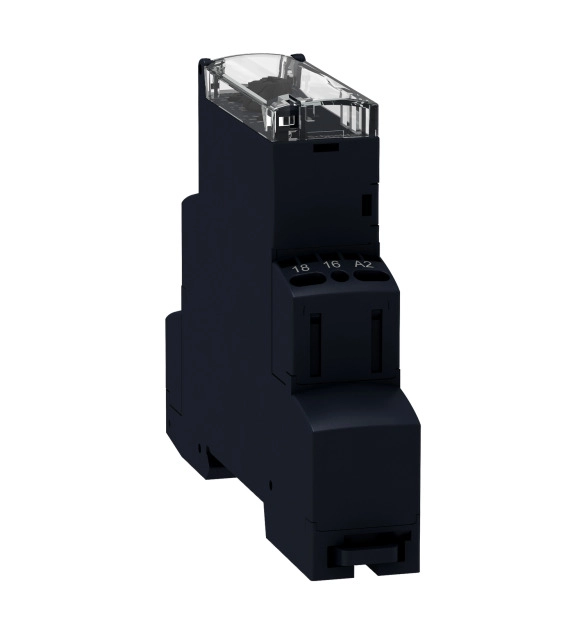

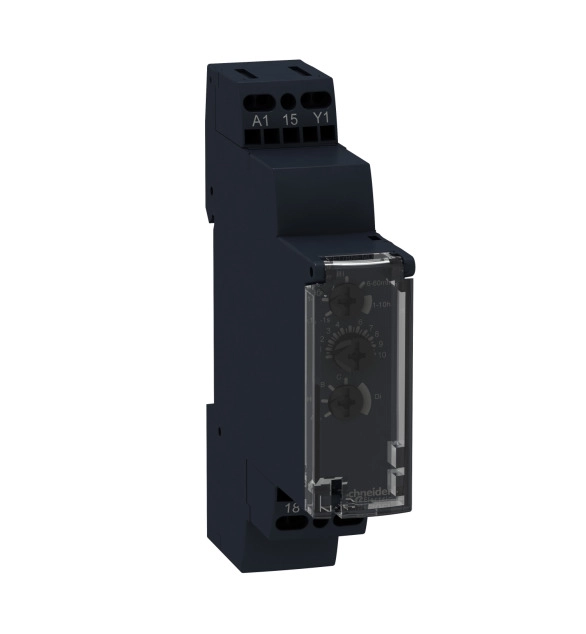

This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24V DC, 24V to 240V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.
