СКУ: 56512
Реле RH197P Vigirex - 230 V AC 50/60 Hz
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000460
-
Rated control supply voltage Us at AC 50HZ
220
-
Rated control supply voltage Us at AC 60HZ
220
-
Error registration possible
FALSE
-
Indication of difference current
FALSE
-
Function
EV005827
-
With detachable clamps
FALSE
-
Rated frequency
50
-
Response value amperage 1
0.03
-
Max. permitted delay-on energization time
4.82
-
Number of contacts as change-over contact
2
-
Width
72
-
Type of electric connection
EV005755
-
Height
72
-
Depth
92
-
Number of contacts as normally open contact
-
Number of contacts as normally closed contact
-
Rated voltage
-
Min. adjustable delay-on energization time

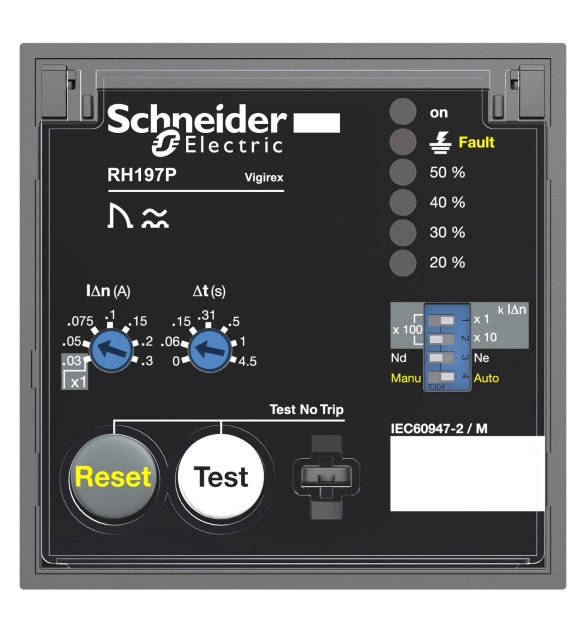

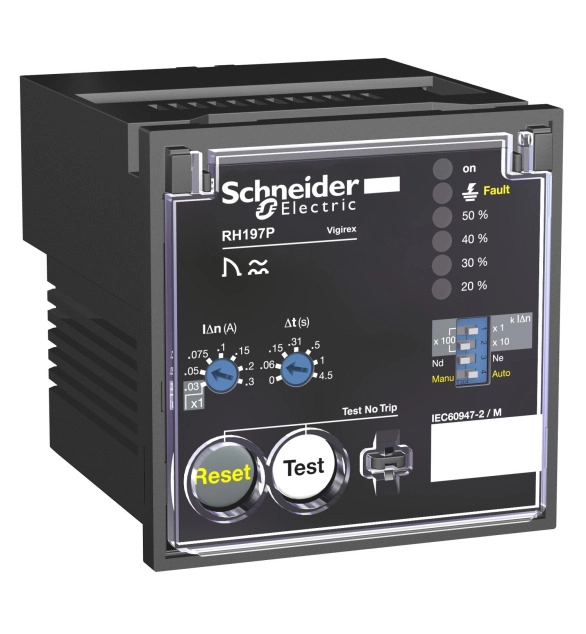

VigiPacT RH197P is a front panel mounting residual current protection relay. It protects against people direct or indirect contact, property fire hazards and motors. It measures the earth leakage current in an electrical installation via its associated toroid. It trips the associated circuit breaker when the set residual operation current is overrun. The operational supply voltage is 220/240VAC 50/60Hz. It is a type A earth-leakage protection class. The current sensitivity is (IDn) selectable with 19 thresholds from 30mA to 30A. The time delay (Dt) is selectable with 7 settings from instantaneous to 4.5s. The alarm is set by Dip switch at 100% of IDn. A switch make the selection between local manual reset or automatic reset after a fault clearance. The monitored distribution system voltage is up to 1000VAC 50/60/400Hz. It is installed on a front panel switchboard and the protection degree is IP40. It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor.
