СКУ: RM17TE00
Реле PH ROT:FAILURE 208-480VAC ASYMM UV/OV
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Depth
72
-
Voltage type for actuating
EV000460
-
Number of contacts as change-over contact
1
-
With detachable clamps
FALSE
-
Height
90
-
Rated control supply voltage Us at AC 50HZ
208
-
Rated control supply voltage Us at AC 60HZ
208
-
Width
17.5
-
Voltage measuring range
183
-
Phase sequence monitoring
TRUE
-
Phase failure detection
TRUE
-
Function under voltage detection
TRUE
-
Function over voltage detection
TRUE
-
Phase imbalance monitoring
TRUE
-
Max. permitted off-delay time
10
-
Min. adjustable off-delay time
0.1
-
Number of contacts as normally closed contact
-
Number of contacts as normally open contact

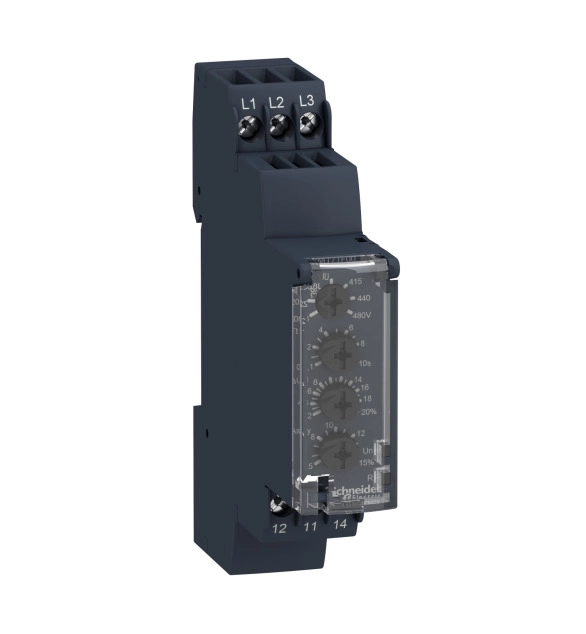

Harmony RM17-TE relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. Features include one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. Additionally offers a sealable cover, simple and precise settings with screw trimmers. The product continuously monitors its power supply, and if an abnormal condition occurs, the output relay is de-energized. This multi-function controller works well in hard-wired logic automated systems. Compatible perfect for upgrading old installations without needing a PLC.
